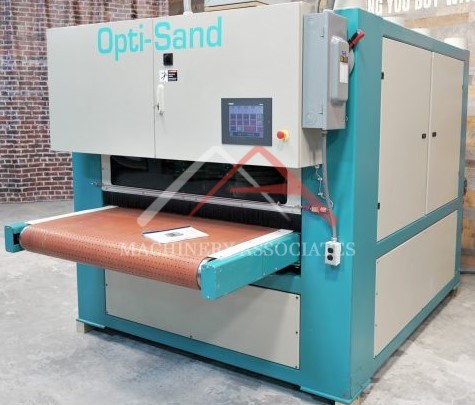

Opti-Sand R52V Rotary Finish and Sealer Sander

2011 Opti-Sand R52V Rotary Finish and Sealer Sander

MA ID: FSA - 13426
Price: $48,000.00


Manufacturer: Opti-Sand
Model: R52V
Year of Manufacture: 2011
Condition: Excellent
Electric: 460 Voltage 60 Cycle 3 Phase
Optisand Rotary Finish Sealer Sander


1-Head, 52″ max. width cap., 0″ – 4″ max. part thickness opening

(1) Carousel head

(4) rotating arbors mounted on a central rotating deck assembly, carousel deck rotation from 4 to 24 RPM

Front & rear spindles 7″ dia. x 42″ long

(2) center spindles 7″ dia. x 57″ long; 60 – 600 RPM Spindle speed with inverter control (reversible)

Feed system with vacuum conveyor belt feed, variable feed speed from 4 – 46 FPM, 3 HP feed drive with (2) 10 HP vacuum pumps & motors

Spindle speeds, head rotation speeds, and conveyor speeds; all inverter controlled with infinite knob adjustment and digital readouts; work piece height is push button adjusted with digital readout

Sound enclosure

(4) easy access doors

(4) dust collection outlets of 6″ dia. each

Feed mat size 52″ x 151″

Designed to finish sand & sealer sand work pieces such as raised panel cabinet doors, entry doors, louvers, shutters, etc


Shipping Footprint: 155 (length) x 88 (width) x 98 (height)
Weight: 7000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
