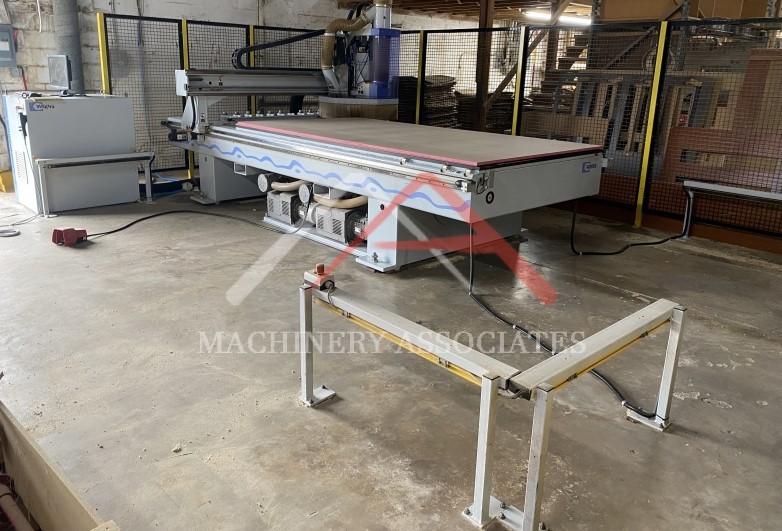

Weeke Profiline BHP 007/510 CNC Router

2009 Weeke Profiline BHP 007/510 CNC Router

MA ID: RC3 - 13385
Price: $44,000.00

CNC Router (3-axis)

Manufacturer: Weeke
Model: Profiline BHP 007/510
Year of Manufacture: 2009
Condition: Very Good
Electric: 480 Voltage 60 Cycle 3 Phase
Weeke CNC Router


Fixed-Table, Moving Gantry Design

Phenolic Vacuum Table: 61" x 122"

Router Electrospindle, Accept HSK-63F Tool Holders

13 Tool holders Included

Eight-Position Stationary Automatic ToolChanger w/ Tool Pick-up Station

Seven-Spindle Vertical Drilling Block (4 in X, 4 in Y)

Ball-Screw Movement in Y & Z Axes

Rack & Pinion Movement in X Axis

All Axes Move on Lineal Guides & Bearings

Dual Servo-Drive for Moving Bridge

One Pop-up Reference Pin on Each 5' Edge, Two on Each 10' Edge

PC User-Interface w/ Remote Pendant

Four ~4 HP Vacuum Units, Mounted Under Machine Table

Safety Fencing Light-Curtain

Includes Vacuum Fixture Pods for Smaller Parts

Shipping Footprint: 16 (length) x 8 (width) x 8 (height)
Weight: 8000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
