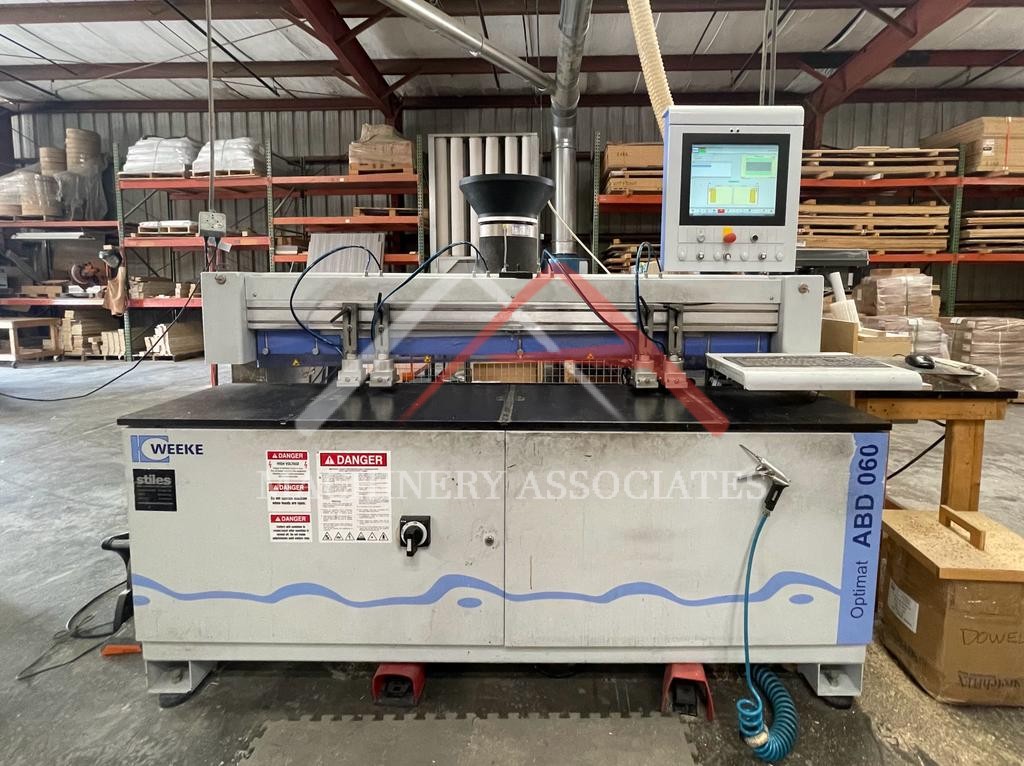

Weeke Optimat ABD 060 Glue Bore Dowel CNC Machine 2015
Very clean ready for immediate shipment. This machine has programmable Z allowing dowel placement anywhere on the edge of the board!
| MA ID: | BGD - 13383 |
| Status: | Sold |
| Price: | $23,500.00 |
| Category: |
Bore/Glue/Dowel |
| Manufacturer: | Weeke |
| Model: | ABD 060 |
| Year of Manufacture: | 2015 |
| Condition: | Very Good |
| Electric: | 230 Voltage 60 Cycle 3 Phase |
|
Weeke Optimat
CALL FOR AVAILABILITY
Machine Description: CNC Dowel Inserter for horizontal drilling and dowel inserting Engineered to spray glue or water Features a Sorbtech main beam to minimize vibration Pneumatic control of center stop and right and left fences Open end table for machining parts longer than 48" Vibrating hopper for automatic feeding of dowels Larger 17" display and Woodwop programming Servo control of drill height and drill depth via program 3 independent spindles on 32mm centers
Technical Specs: Maximum part length; 1250 mm / approx. 49.22" Minimum part length; 20 mm / approx. 0.792" Maximum part width 7800 mm / approx. 31.52" Minimum part width 50 mm / approx. 1.972" Maximum part thickness 60 mm / approx. 2.362" Minimum part thickness 10 mm / approx. 0.392'' Max part length for center stop 600 mm / approx. 23.52" Horizontal drilling aggregate three (3) spindles, 7,500 rpm Standard dowel dimensions 8mm x 30 mm / 8mm x 35 mm Drill shank diameter 10 mm Total length of drill bit 70mm Length of machine 2570 mm (101") Width of machine 1286 mm (50.6") Height of machine 1921 mm (75.6") |
|
| Shipping Footprint: | 10 (length) x 5 (width) x 6 (height) |
| Weight: | 3000 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
