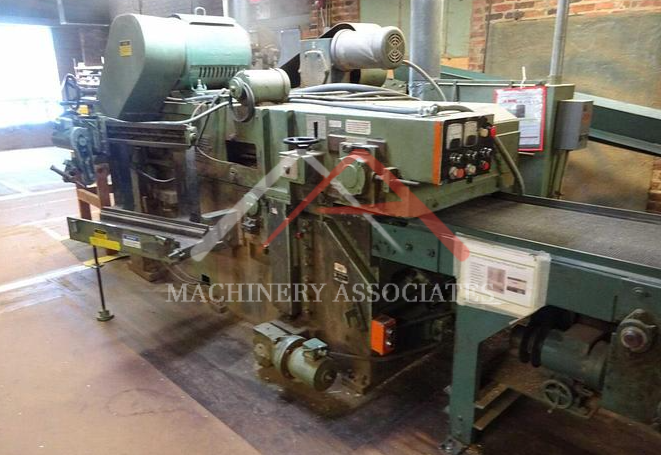

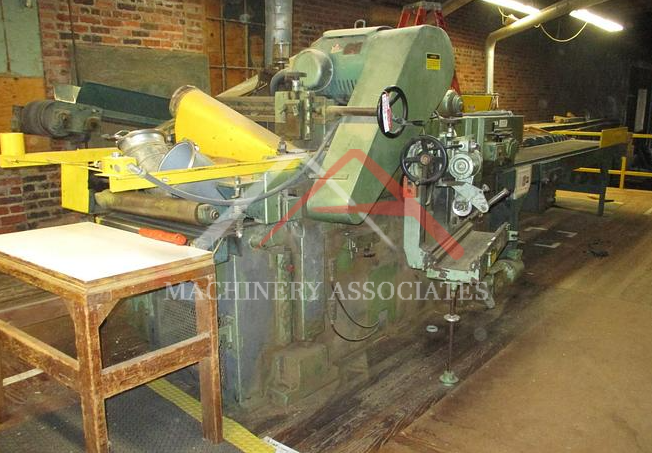

NORTHFIELD 240 24" DOUBLE SIDED THROUGH FEED PLANER
NORTHFIELD 240 24" DOUBLE SIDED THROUGH FEED PLANER
| MA ID: | P2S - 13381 |
| Status: | Sold |
| Price: | $24,900.00 |
| Category: |
Planers - Double or Four Sided |
| Manufacturer: | Northfield |
| Model: | 240 |
| Year of Manufacture: | 1981 |
| Condition: | Good |
| Electric: | 230/460 Voltage 60 Cycle 3 Phase |
|
Good condition 2 sider for handling warped and twisted lumber. Holddown fingers keep lumber flat going through the machine.
Standard Specifications: 24" x 6" work piece capacity 12" min. length, (6" min. butted) x 1/4" min. thickness 30 HP upper cutter head motor, 20 HP lower head motor Northfield Whisper helical carbide cutterhead, (1/2" max. depth of cut) 1 HP platen/thickness elevator motor 5 HP variable speed feed motor, (25 to 100 ft/min. feed speed) 2" concentric chipbreakers with pressure rollers (.001" to .100") independent bottom table feed roller adjustment Main carpet feed conveyor with (1,300), 9/16" diameter holddown fingers Includes grinding equipment for upper and lower cutterheads - 115" x 79" x 69" approx. overall dimensions - Weighs approx. 12,500 lbs. |
|
| Shipping Footprint: | 120" (length) x 80" (width) x 69" (height) |
| Weight: | 12000 lbs |
