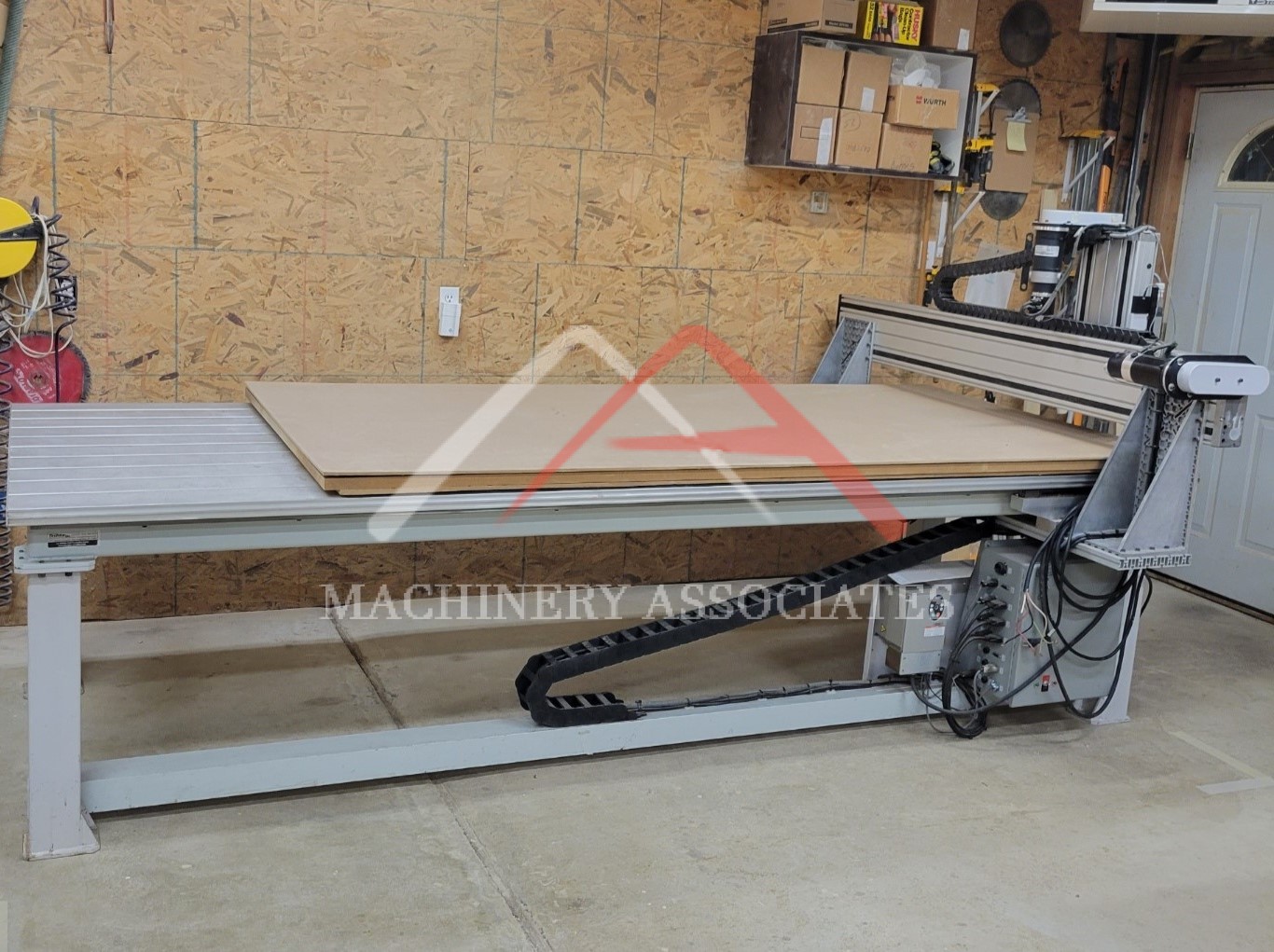

Techno LC Series 4X8 CNC Router
Techno CNC Router. GREAT for a small shop!
| MA ID: | RC3 - 13379 |
| Status: | Archived |
| Price: | $10,000.00 |
| Category: |
CNC Router (3-axis) |
| Manufacturer: | Techno |
| Model: | LC Series 4896 |
| Year of Manufacture: | 2009 |
| Condition: | Very Good |
| Electric: | 240 Voltage 60 Cycle 3 Phase |
|
Techno CNC Router
Specifications: 5hp Router Work Envelope (X x Y) 48 X 96 Floor Print (W x L x H) 80 X 132 X 70 Maximum Speed in/min: 250 or 800 Bridge Clearance: 5.0 Z-Axis Travel: 8.9 • Ball screws on all 3 axes, providing the highest degree of accuracy and repeatability which results in machine longevity, and requiring minimal maintenance. • THK rails and bearings on Y-axis. These high-grade carriages provide smooth motion, longevity, and can handle very high loads, which in turn, provides an excellent edge finish. Closed-loop servomotors. These high-powered motors and drives monitor the machine’s position at all times. • End of travel limit switches • Proprietary X-Z axis beam design which helps keep debris and dust away from drive components. This unique design keeps the machine running while keeping machine maintenance to a minimum. • Techno Windows-based G-Code Interface is included with the system. It provides production logging and reporting, infinite look-ahead and continuous motion. Free software updates via the internet. • Heavy-duty aluminum T-Slot table surface which can easily be upgraded for vacuum table hold-down. • Tool calibration touch pad. |
|
| Shipping Footprint: | 132 (length) x 80 (width) x 70 (height) |
| Weight: | 1500 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
