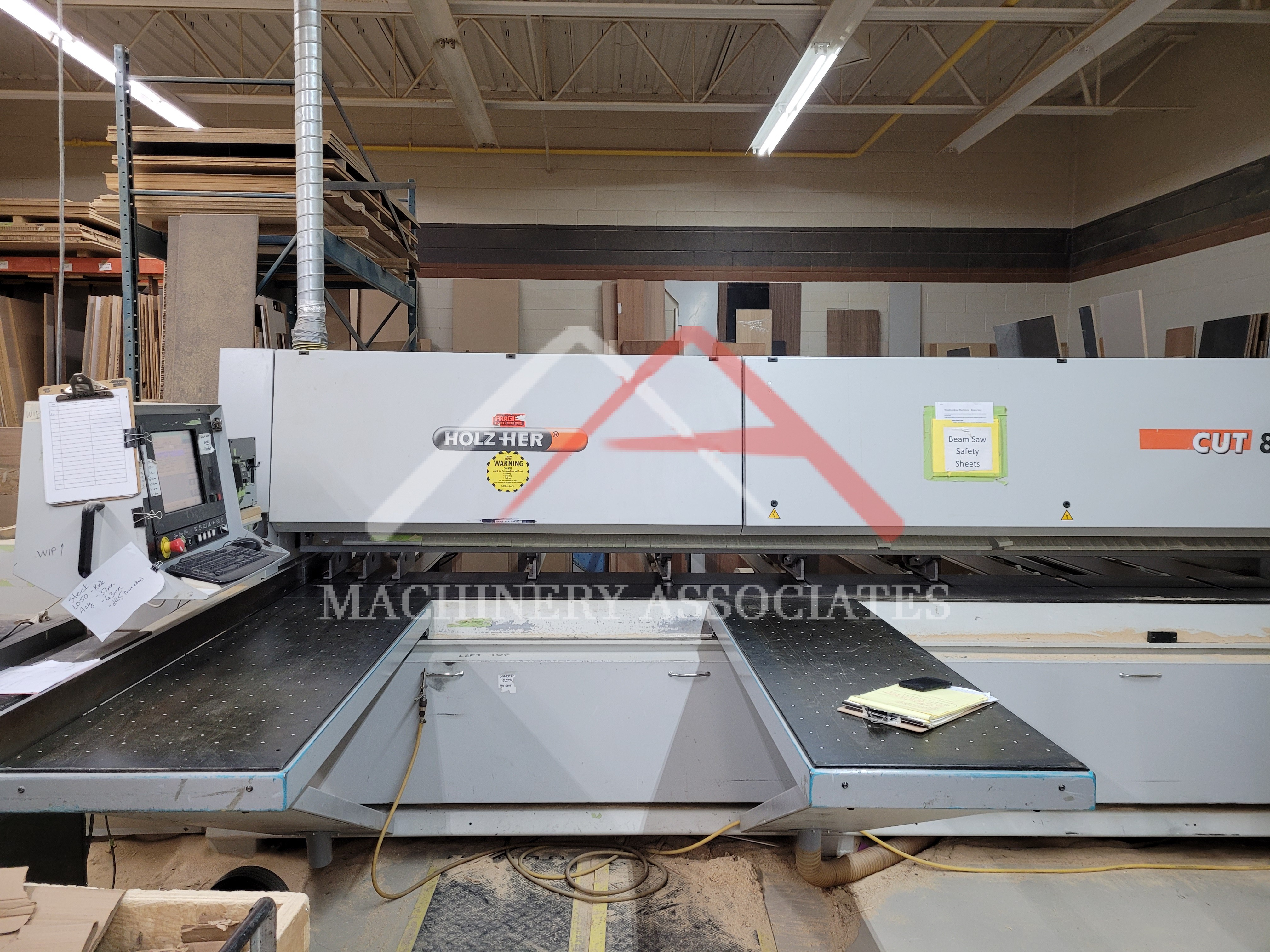

Holz Her Cut 85 Beam Saw

3,200 mm (126") maximum rip capacity

MA ID: PNC - 13290
Price: Call For Price
Category:

Panel Saw - CNC

Manufacturer: HolzHer
Model: Cut 85
Year of Manufacture: 2006
Condition: Good
Electric: 400 Voltage 60 Cycle 3 Phase
Holz Her Beam Saw

Specifications:

3,200 mm (126") maximum rip capacity

3,200 mm (126") pull back pusher stroke

85 mm (3.35") maximum cut height

97 mm (3.8") saw blade projection

20 HP main saw motor

350 mm/13.77" maximum blade diameter

3 HP scoring saw motor

180 mm/7" maximum blade diameter

Automatic saw blade height adjustment

Variable feed speed from 1 - 100 MPM (3 - 328 FPM)

Return speed of 100 MPM (328 FPM)

Automatic cutting length limiter adjusts the cutting length at the end of the workpiece

Automatic saw carriage lubrication

Rear roller table

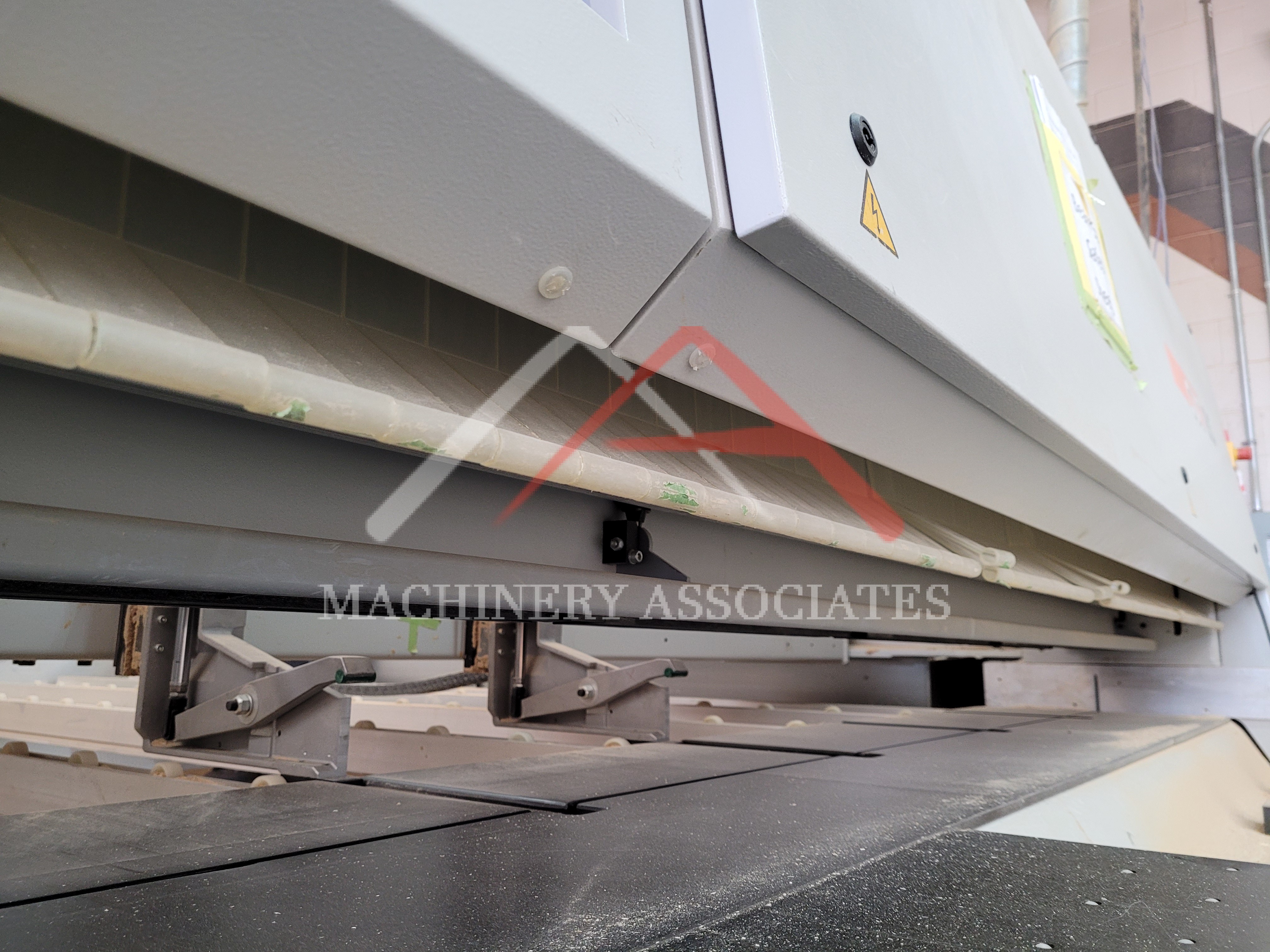

Pusher fence with six (6) pneumatic grippers

25 MPM (82 FPM) forward positioning speed

80 MPM (259 FPM) return speed

Rack and pinion movement on both sides to assure the pusher remains parallel

Three (3) air floatation tables, 24" x 78"

PC control with standard keyboard and mouse

Bar code printer

Side and rear safety fencing


Shipping Footprint: 252 (length) x 150 (width) x 84 (height)
Weight: 12000 lbs
