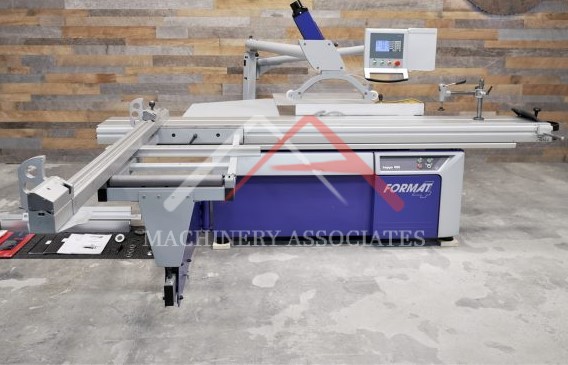

2016 Felder Format 4 Kappa 400 X-Motion Sliding Table Saw
Felder Format 4 Hard to find saw from a 2 man cabinet shop. PROGRAMMABLE RIP FENCE!
MA ID: | PSS - 13289 |
Status: | Sold |
Price: | $21,000.00 |
Category: |
Panel Saw - Sliding |
Manufacturer: | Felder |
Model: | Format 4 Kappa 400 X-Motion |
Year of Manufacture: | 2016 |
Condition: | Excellent |
Electric: | 230 Voltage 60 Cycle 3 Phase |
Felder Sliding Table Saw
Specifications: Automatic measurement correction when the rip fence is horizontal Rip fence park position No collision possible with the saw blade due to the coordination of the tool database by the positioning control The rip fence can be swung away at any point across the full rip capacity Electronic height adjustment with LED display Electronic angle adjustment with digital LED display Tilting of saw-blade 90°-45° Oversized saw arbor with double trunnions Maximum motor power transfer from the Poly-V belt 3-speed: 3500/4500/5500 rpm Optimal dust extraction with the completely enclosed, below table extraction system Dovetail guidance system for height adjustment A highly robust synthetic material located in the guidance track of the tilting brackets, ensures they run smoothly and maintenance free even under the most extreme conditions. The tilt guide segment runs without lubrication and is insensitive to dust. Extremely smooth and precise sliding action! With the roller-bearing system there is no single point of contact between bearings and guiding track, maximizing precision over the lifetime of the machine. Clean, dust-free guide rails obtained by special wipers and brushes. Smooth movement of the sliding table ensured by hardened steel, ground-bearing tracks. Cutting length: 80¾”–145¾” (2,050–3,700 mm) “X-Roll” sliding table, 10 year guarantee Cutting width: 31½”–59″ (800–1,500 mm) Cutting height: 5¼” (133 mm) Control system: x-motion 9×99 program spaces + cutting sequences Electronic height adjustment with LED display Electronic angle adjustment with digital LED display Tilting of saw-blade 90°-45° Oversized saw arbor with double trunnions Maximum motor power transfer from the Poly-V belt 3-speed: 3500/4500/5500 rpm Optimal dust extraction with the completely enclosed, below table extraction system Dovetail guidance system for height adjustment A highly robust synthetic material located in the guidance track of the tilting brackets, ensures they run smoothly and maintenance free even under the most extreme conditions. The tilt guide segment runs without lubrication and is insensitive to dust. Precise double trunnion system High load-bearing capacity and operating life Play free tilt Unaffected by dust Completely maintenance free No lubrication required Tilting of saw-blade 0°-45° 5” (133 mm) of cutting height at 90 degrees 4” (94 mm) of cutting height at 45 degrees The kappa 400 has dado capability. Used with the massive specially designed Format4 dado cutter head clean, precise dado cuts from 1/4”–3/4” (6–20 mm) are guaranteed. The vertical and horizontal position of the scoring blade in relation to the main blade can easily be set from the control panel The scoring blade setting information can be stored in the tooling database for the main sawblade used. When the same main sawblade is used again the scoring blade will reposition itself for that particular blade. |
|
Shipping Footprint: | 12 (length) x 6 (width) x 6 (height) |
Weight: | 2500 lbs |
Please confirm all data before committing to a purchase.
