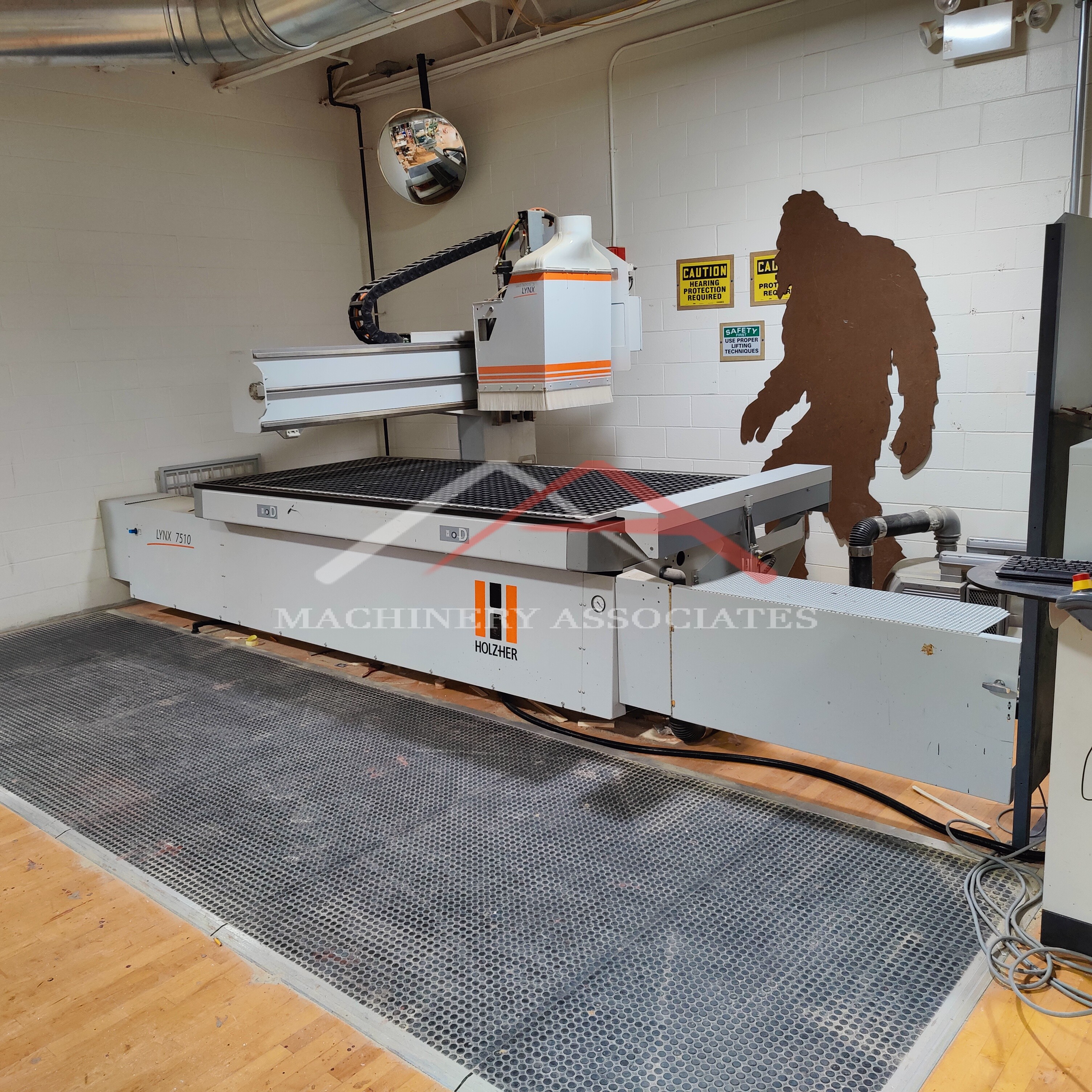

Holzher Lynx 7510 Flat Table CNC Router

EXTREEMLY LOW HOUR School machine!!

MA ID: RC3 - 13269
Price: $49,900.00
Category:

CNC Router (3-axis)

Manufacturer: HolzHer
Model: Lynx 7510
Year of Manufacture: 2012
Condition: Excellent
Electric: multi Voltage
2012 Holzher Lynx 7510 CNC Router

Model Lynx 7510, Series NBA20909

Phenolic flat vacuum work table
Table size 2790 mm x 1350 mm (109.8" x 53.1")
Usable table work area 2690 mm x 1300 mm (105.9" x 51.1")
X-axis travel 3060 mm (120.4")
Y-axis travel 1550 mm (61")
Z-axis travel 325 mm (12.7")
Max work piece thickness 195 mm (7.67")
Max travel speed X & Y axis 70 m/min, Z-axis 20 m/min
6.5 kw (8.7 hp) air cooled electro router spindle motor
1,000-18,000 rpm spindle speed range
HSK-63F spindle mount
End mounted (12) space automatic tool changer
(6) vertical boring spindles mounted in X-axis
(4) vertical boring spindles mounted in Y-axis
32 mm drill centers
1.7 kw (2.2 hp) boring unit drive motor
1,000-6,000 rpm boring spindle speed range
Cantilever router design
(1) Becker freestanding table vacuum pump
type VTLF250

Freestanding electrical and control cabinet
Hand held router head positioning pendant
Flat screen color monitor
Windows computer operating system
Holz Her CNC software on computer
front safety floor mat

Machine has been moved to our warehouse in Hudson, NH 03051


Shipping Footprint: 17 (length) x 8 (width) x 8 (height)
Weight: 7500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
