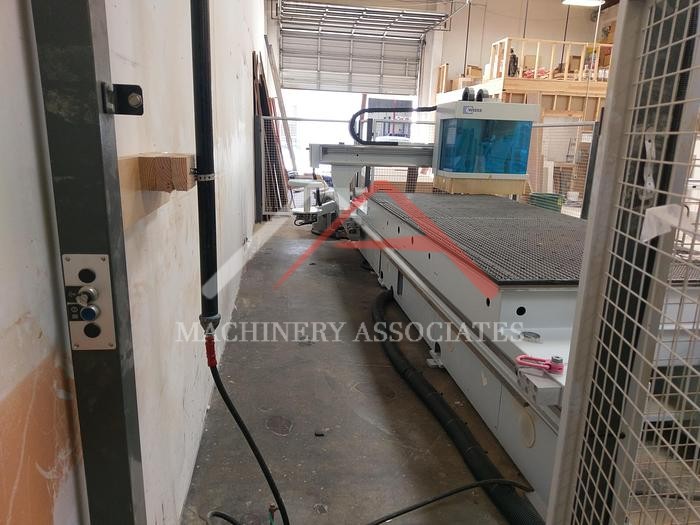

2006 Weeke BHP 200 CNC Router

2006 Weeke BHP 200 5x12 CNC Router

MA ID: RC3 - 13219
Price: Call For Price
Category:

CNC Router (3-axis)

Manufacturer: Weeke
Model: BHP 200
Year of Manufacture: 2006
Condition: Excellent
Electric: 460 Voltage 60 Cycle 3 Phase
Weeke CNC Router

Specifications:

12Hp electro spindle with HSK 63 tool holders

8-position ATC

Tool pickup station

Variable speed vertical boring head with 10 drills in an L-shaped configuration

High volume 60 amp vacuum pump

Weeke woodwop and mcc control system

Alignment pins for large or small pieces

Flat table 5'X12' CNC Router;

Grooved "Matrix" phenolic table divided into (2) work zones.

Working field:

"X" Axis is 3,700 mm (145.6")

"Y" axis 1,550 mm (61")

"Z" axis stroke is 14.5" (370 mm), max.

Material thickness 3.9" (99 mm).

Positioning speed: "X" Axis is 165 FPM (50 MPM), "Y" axis 131 FPM (40 MPM), "Z" axis is 65 FPM (20 MPM);

Machine head travels on THK linear motion guides on all axes.

Work Table: High flow vacuum table for nested base processing;

Drilling Unit: (1) 4 HP (3 kW) motor, variable speed for 1,500 - 7,500 RPM;

(14) independent vertical spindles;




Shipping Footprint: 26 (length) x 8 (width) x 8 (height)
Weight: 14000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
