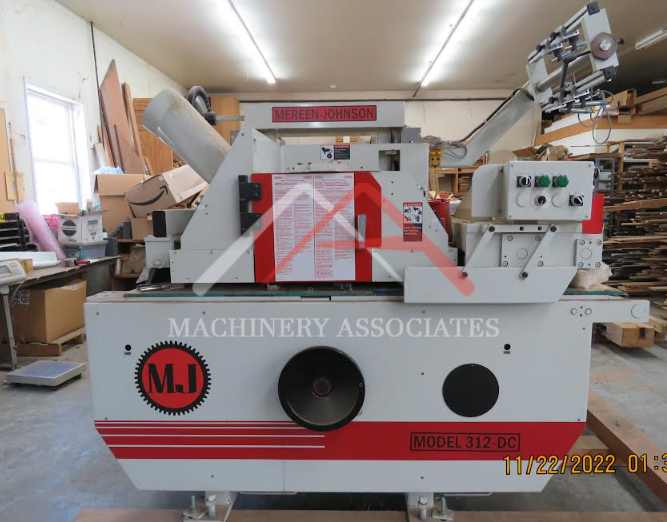

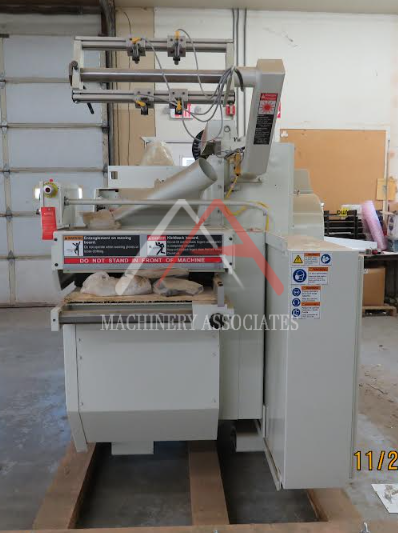

MEREEN JOHNSON 312-DC MULTIBLADE GANG RIP SAW

"NEW" NEVER USED 2017 MEREEN JOHNSON 312-DC MULTIBLADE GANG RIP SAW

MA ID: RGR - 13213
Price: $55,900.00
Category:

Rip Saw - Gang (multi blade)

Manufacturer: Mereen-Johnson
Model: 312-DC
Year of Manufacture: 2017
Condition: New
Electric: 460 Voltage 60 Cycle 3 Phase
LOOK AT ME 2017 NEW AND NEVER RUN, I CAN SAVE YOU MONEY RIGHT FROM THE PURCHASE!!!

Working cap.: 12 in. wide with 6" throat; thickness: 1/8-3-1/2 in. using 12 or 14 in. diameter blades; Minimum infeed length 22".

Arbor: 2-3/16 in. diameter with sleeve.

Motor: 50 HP direct drive 3,600 RPM, electrical lockout on access door, arbor hand brake and motor load meter.

Adjustments: Manual handwheel vertical adjust of press rolls and bed plate for unit vertical adjust with scale and pointer thickness reference. Kickback fingers: Single bottom and double upper infeed, and single upper outfeed. Hold downs & Bed plate: Four 3" dia. air loaded overhead idle press rolls

Feed Drive: 3 HP motor, 30-150 FPM speed frequency drive.

Note: Includes (4) lasers. (4) Blades, (4) sleeves and spacers.


Shipping Footprint: 7 (length) x 6 (width) x 7 (height)
Weight: 6500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
