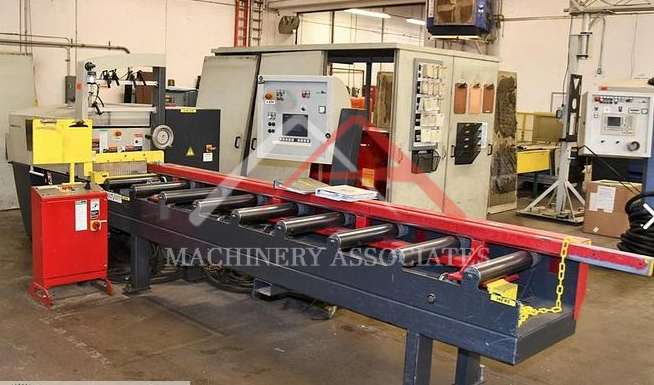

RAIMANN KM310 1M MOVABLE BLADE GANG RIP WITH INFEED
RAIMANN KM310 1M MOVABLE BLADE GANG RIP WITH INFEED. INFEED UNIT FOR BOARD POSITIONING WITH MOVABLE BLADE AND FIXED POCKETS
|MA ID:||RGR - 13208|
|Price:||Call For Price|
Rip Saw - Gang (multi blade)
|Year of Manufacture:||2003|
|Electric:||460 Voltage 60 Cycle 3 Phase|
Great condition for an slightly older machine, 1 movable blade and 5 lasers. Good chain.
Working dimensions: Cut width 12-1/4”; 13-3/8” with movable blades and pass through width of 31-1/4”.
Arbor: RAIMANN “QUICK FIX” arbor with one (1) movable blades and four fixed. (5) Lasers for pocket dimension selection. Dia. 3.14”.
Motor: 50 HP 4,500 RPM
Saws: Depth of cut with movable blade 3-1/2” with pressure shoe; 4-4/8” with out pressure shoe.
Feed speed: Up to 157 FPM
Chain: 13-3/8" wide; Oil lubricated with “auto shut”: spikes every 3rd link.
Pressure rollers: (4) 2/2 total with protection against kickback to operator.
Includes: Blades and spacers.
Woodstorm Lateral infeed conveyor with movable fence.13' long.
|Shipping Footprint:||14 (length) x 8 (width) x 7 (height)|
