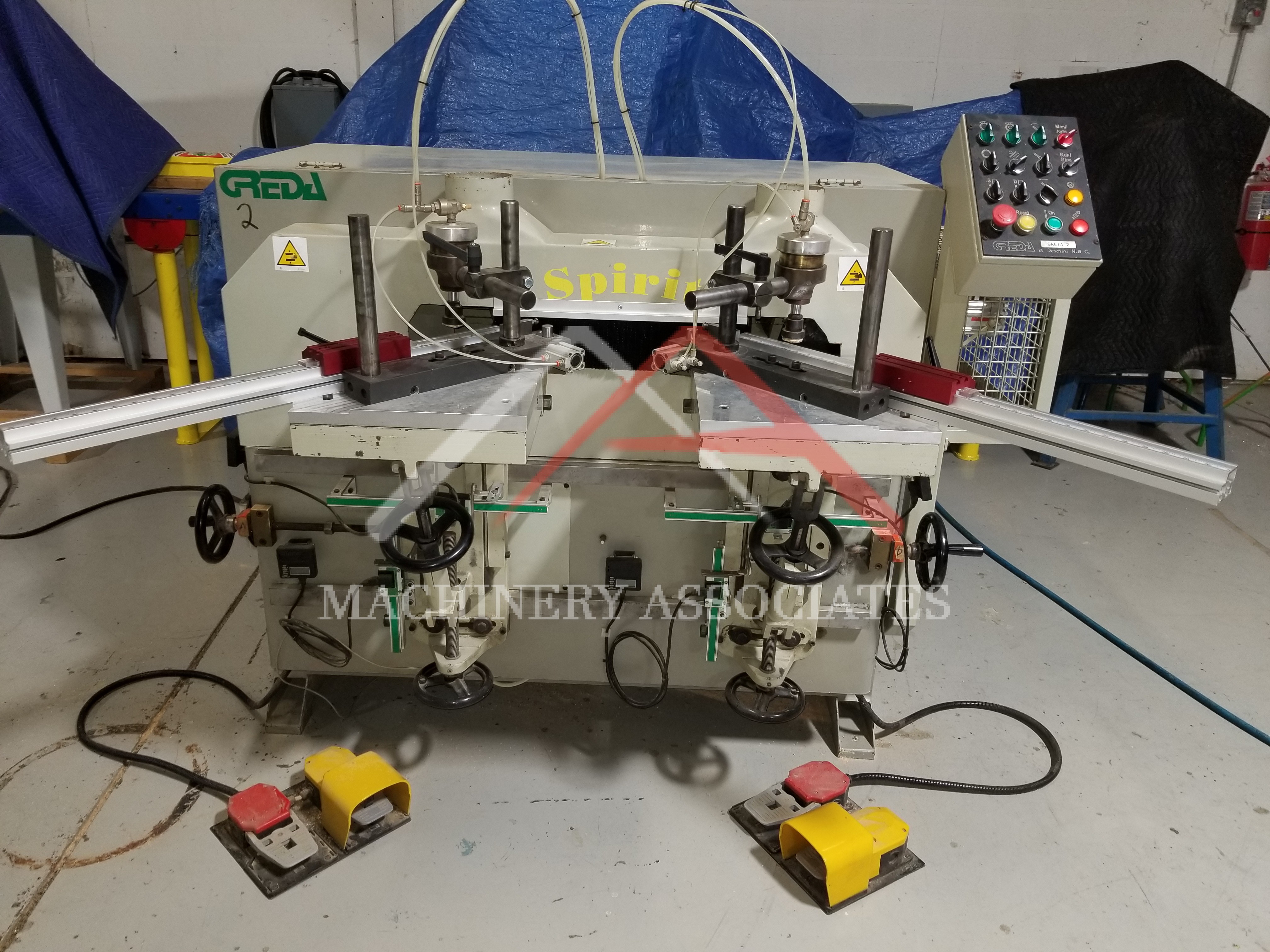

Greda SPIRIT Mortise and Tenoning Machine

MA ID: MO - 13199
Price: $4,250.00
Category:

Mortisers (Horiz.& Vert)

Manufacturer: N/A
Model: SPIRIT
Year of Manufacture: 2005
Condition: Very Good
Electric: 460 Voltage 60 Cycle 3 Phase

The Greda SPIRIT is designed for simultaneous end cutting, mortise and tenon operations on mitered doors, frames and cabinet doors.

The SPIRIT has two tables, one for or end cutting and mortising work and one for tenoning work.

The tables are adjustable and the operations are driven by air over mechanics.

  • Model; SPIRIT
  • Serial #1046
  • Manufacture 10 2005
  • 460 Volt, 3Phase, 60Hz
  • Maximum Power Consumption, 25 Amp
  • Manual Included
  • Cleaned and Checked
  • Very Good Condition

Technical Data

  • Two Fixed Working Tables
  • Mechanical and Digital Readouts for Table Positions
  • Fences at 45°
  • After Market GlideStop Outboard Length Stop, 30” Maximum Length (longer lengths available)
  • Automatic and Manual Jog Modes
  • Centralized Lubrication
  • Approximate Weight; 1,800Kg (4,000lbs)
  • Table Inclination: 0° to 20°
  • Two 4.75” Dust Ports

Mortising Unit

  • Sawblade Motor; 3HP
  • Sawblade Diameter: 350mm
  • Mortising Motor: 3HP
  • Oscillating Motor: 1HP
  • Maximum Slot Length: 120mm (4.7”)
  • Maximum Slot Thickness: 85mm (3.3”)
  • Mortise Bit Shank: ER 32, Outfitted with a ¼” Tool Holder
  • Installed Tooling; ¼” Diameter x 7/8” Cut Length Bit
  • Maximum Spindle Diameter: 30mm (1.18”)

Tenoning Unit

  • Tenoning Motor: 3HP
  • Cycle Motor: 0.75HP
  • Tenon Length: from 100mm (3.9”) + Thickness
  • Tenon Thickness: 5mm to 40mm (0.197” – 1.575”)
  • Tenon Maximum Depth: 85mm (3.35”)

Crating Fee to Ship: $250.00

Scrap unit for parts available as well if interested.


Shipping Footprint: 65 (length) x 70 (width) x 60 (height)
Weight: 4000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
