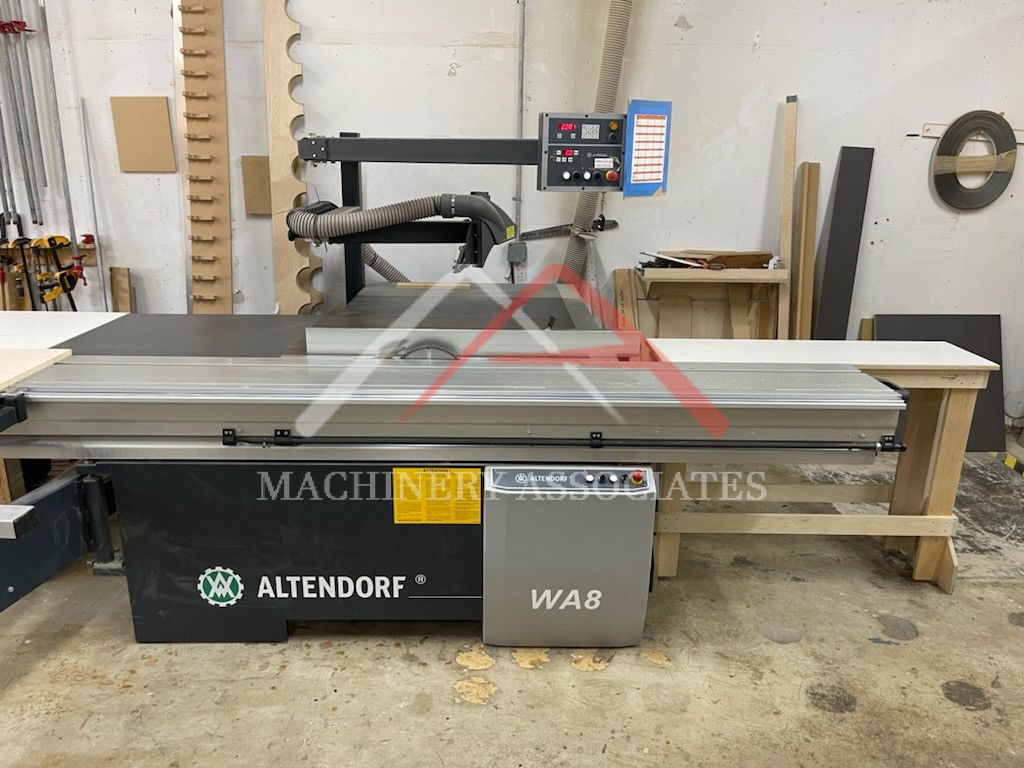

2019 Altendorf WA8 Sliding Table Saw
2019 Altendorf WA8 Sliding Table Saw Cleaned And Checked
| MA ID: | PSS - 13149 |
| Status: | Sold |
| Price: | Call For Price |
| Category: |
Panel Saw - Sliding |
| Manufacturer: | Altendorf |
| Model: | WA8 |
| Year of Manufacture: | 2019 |
| Condition: | Very Good |
| Electric: | 220 Voltage 60 Cycle 3 Phase |
|
Altendorf Sliding Table Saw
CALL FOR AVAILABILITY Specifications: Pivoting eye-level operating panel Motorised rise/fall and tilt adjustment 0 – 45° for the main saw blade. Digital tilt angle display Manual Miter Fence Rip fence with motorised adjustment. Cutting width 1300mm Sliding table including table lock. Sliding table length 3800mm Sliding table dimension 3200 x 404mm Max. rip capacity 1300mm (1000mm optional) Max. crosscut capacity 3200mm Main saw blade diameter (max.) 400 mm Main saw bore 30 mm Max. cutting height (400mm blade) 125mm Main saw motor 7.5 HP Main blade speed 3000 / 4000 / 5000 RPM Scoring saw blade 120 mm Scoring saw blade bore 20 mm Scoring blade motor 1 HP Scoring blade speed 8200 RPM Blade tilting capacity (motorized) 0-45o Dust outlets (2) 120 / 80 mm Electrics 230/3/60 or 575/3/60 Net Machine weight 1100 kgs Table height from floor 910mm Space requirement 7050 x 3814mm |
|
| Shipping Footprint: | 12 (length) x 6 (width) x 5 (height) |
| Weight: | 2500 lbs |
Please confirm all data before committing to a purchase.
