Pillar H 49 Bore Dowel CNC Machine 2016

Completely Cleaned and Checked! Ready Immediately Ready to Run.

MA ID: BGD - 13078
Price: $21,500.00
Category:

Bore/Glue/Dowel

Glue & Dowel Inserters

Manufacturer: Pillar
Model: H-49
Year of Manufacture: 2016
Condition: Very Good
Electric: 220 Voltage 60 Cycle 3 Phase

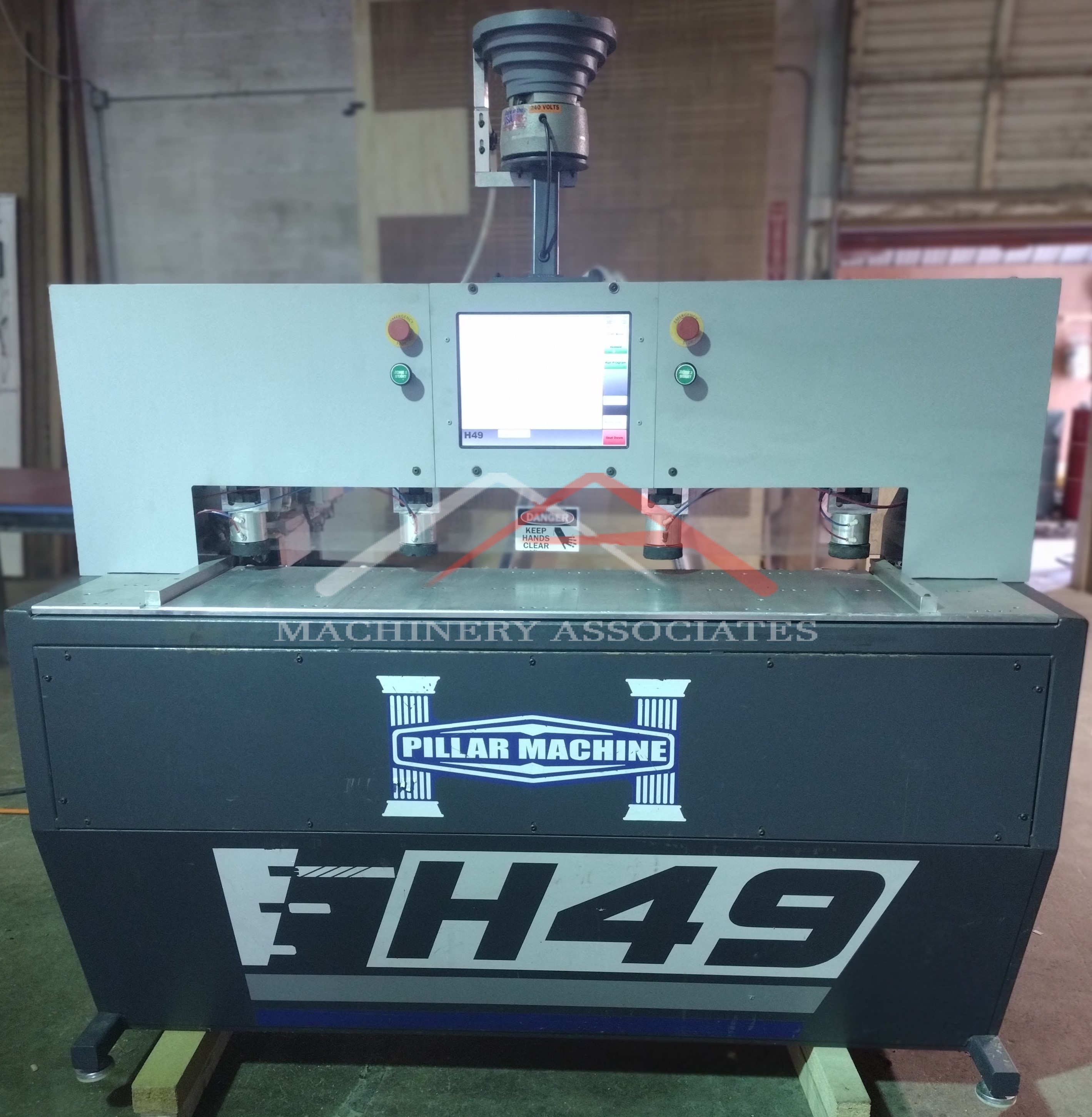

2016 Pillar H-49 CNC Bore Dowel Machine

Machine Description:

Machine Has Been Fully Serviced

New Injector Service Kit Installed

49" work field

2 Zones

X Axis CNC control for positioning

4 clamp Hold-downs

Glue injecting system (injects glue or water)

1 HP High Frequency 18,000 RPM Direct Drive Spindle

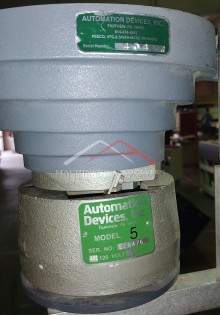

12" Diameter vibratory dowel bowl mounted above machine (holds 800 dowels)

10" Industrial Color Touchscreen PC for programming and running programs

Digital Mechanical readouts for height and depth

1/2" Thick Machined Aluminum Work Surface

Windows 7 Operating System


Shipping Footprint: 72 (length) x 50 (width) x 84 (height)
Weight: 2500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
