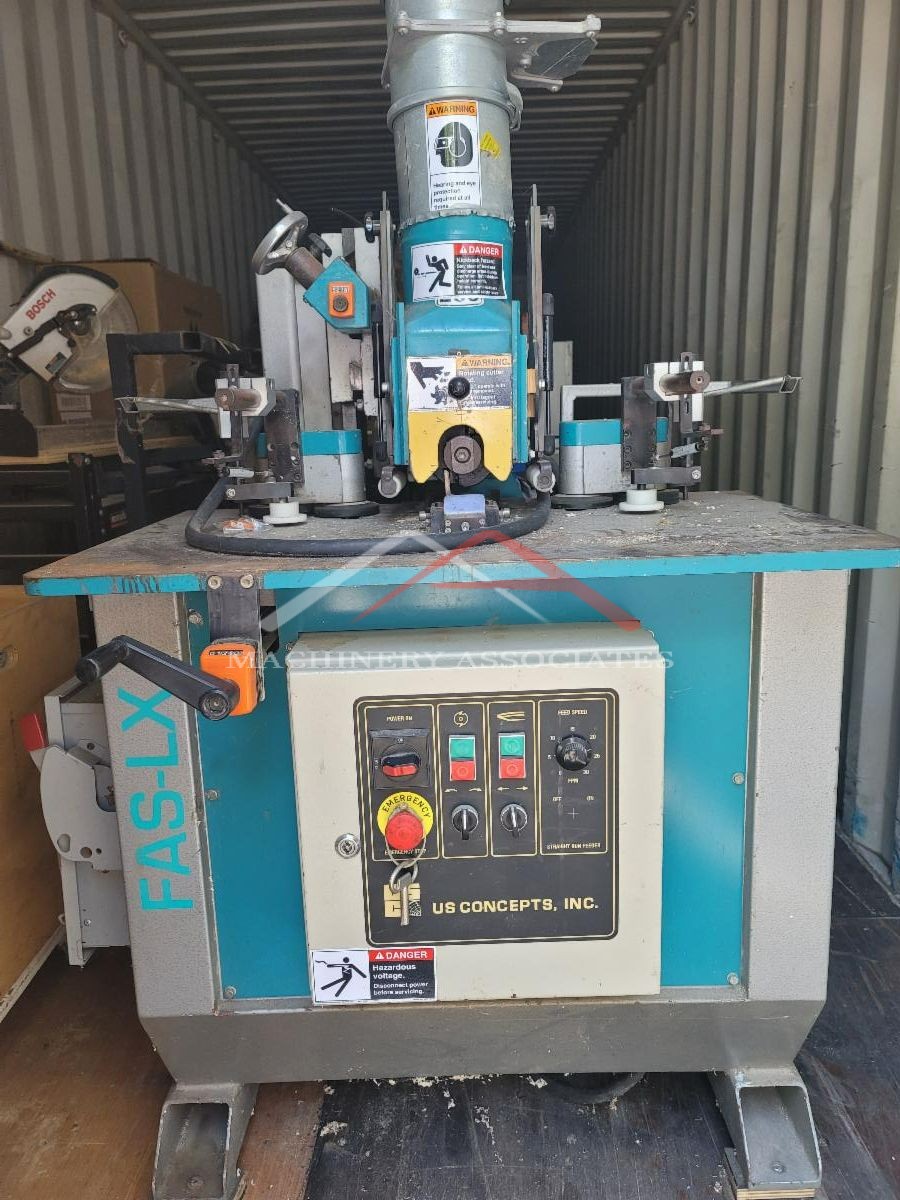

US CONCEPTS FAS-LX ARCH MOULDER
US CONCEPTS FAS-LX ARCH MOULDER. Equipped with (2) axis spindle adjustment and spindle tilt.
|MA ID:||ASM - 13013|
|Year of Manufacture:||2006|
|Electric:||460 Voltage 60 Cycle 3 Phase|
US CONCEPTS ARCH MOULDER
US CONCEPTS FAS-LX ARCH MOULDER.
Equipped with (2) axis spindle adjustment and spindle tilt. The spindle adjustment and floating feed make cutting circular, elliptical and straight casing and crowns a breeze. The spindle can be adjusted from horizontal to 52 degree to insure the proper cut on the parts you need.
Motor: 7-1/2 HP motor; cutterhead speed - 6,200 RPM.
Spindle: 1-1/4" diameter spindle; spindle tilts up to 52 degrees; two axis adjustment; 6" maximum cutting width; 4-1/4" maximum material height. Siko digital readouts on horizontal and vertical adjustment of head with cutter guard.
Feed: Variable speed controller for feed speeds of 0 to 30 FPM; floating feed system with (5) powered feed rolls.
Table: 36" x 24" steel table; automatic starter with motor overload protection.
Includes: Optional forward and reverse controls for spindle and feed.
|Shipping Footprint:||5 (length) x 5 (width) x 5 (height)|
