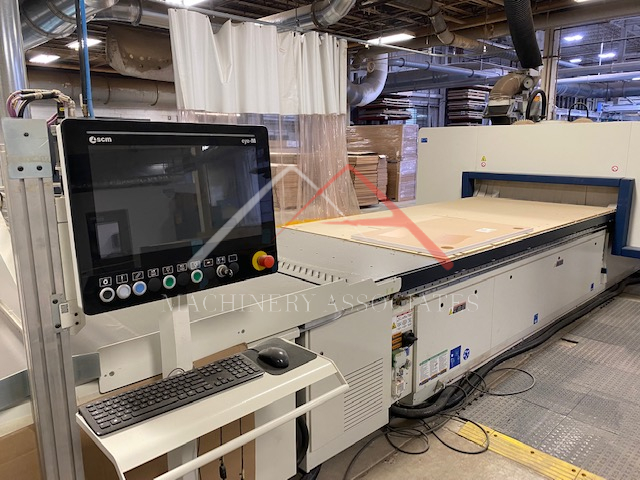

Morbidelli X200 CNC Router Nested Based Cell 5x10 w/Roller Holddown

Morbidelli X200 Feed through Cell Late model and barely used VERY LOW HOURS, 20hp spindle and C-Axis!

MA ID: RC3 - 12986
Status: Sold
Price: $105,000.00

CNC Router (3-axis)

CNC Router (4-axis)

Manufacturer: Morbidelli
Model: X200 W/infeed and offload
Year of Manufacture: 2019
Condition: Excellent
Electric: multi Voltage
2019 Morbidelli X200 CNC Router, Nested based cell

This machine was on the water, headed to the vendor that bought it,  when their product re-design made it inefficient to use this machine. The machine was purchased in 2019 but not installed until late 2020 due to Covid. The machine has sat, mostly unused, since then.

Table; Aluminum Vacuum Table (8 zone)

 *    2 - Busch Mink pumps

 *     Also has roller hold - downs for greater security of your panels, even stacked

Spindle; 15kw (20hp) (HSK)  with C axis (Liquid cooled)

Spindle speed; Variable to 24k rpm.

14 position ATC w/2 pickup spots

Tool length device

Z height clearance 150mm (5.9")

Loading table; 1570 x 3100mm

 *  Weight capacity of lift table is 2500kg (5511lb)

Off Load table; Continuous belt feed, with dust extraction (upper and below)


A fixed console controller with hand held mini portable

Xilog Maestro Cad software (2 licenses)

Pictures show it dirty from non-use (dusty) We left it like this so that you'd understand. The machine is under power for a short period of time. We would be happy to demo it for you. It will be in our Hudson, NH  facility after that.

Weight: 15000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
