2004 Anderson Stratos Pro 5x12 Flat table CNC Router

Anderson 5x12 Stratus Pro! Heavy Duty and ready to work!

MA ID: RC3 - 12979
Price: $42,500.00

CNC Router (3-axis)

Manufacturer: Anderson America
Model: Stratyos Pro
Year of Manufacture: 2004
Condition: Very Good
Electric: multi Voltage

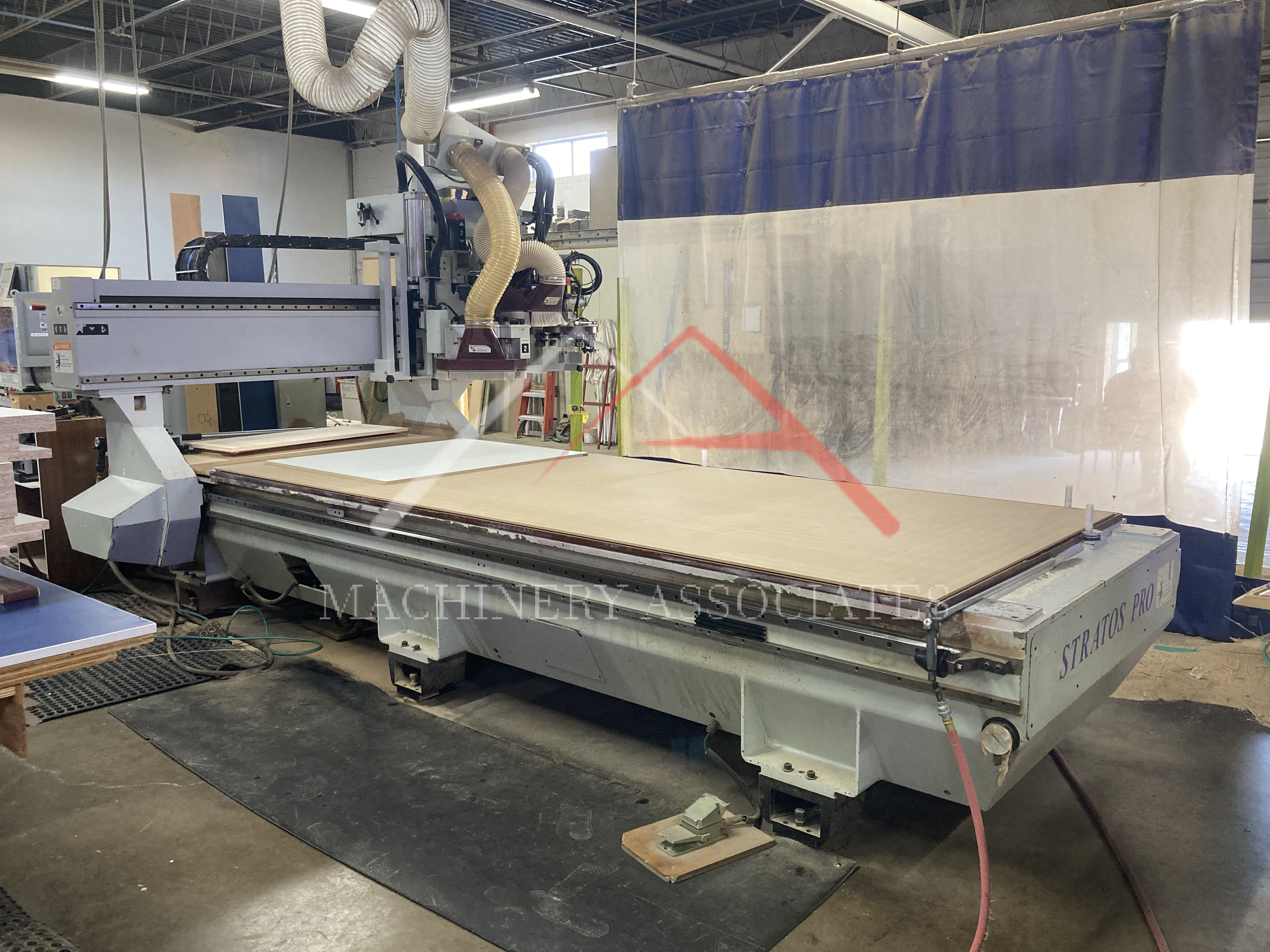

2004 Anderson Stratos Pro Flat Table CNC Router (5x12)

This machine is under power (Demo available) until the new machine arrives (late August)



Andersen 15hp HSK 63F Air Cooled Spindle (0-24,000 rpm)

10 Tool Automatic Toolchanger

Line Boring Unit ; 2 HP 4500RPM w/  10 + 5  (L Shaped) Pattern = 13 Vertical Drills + 4 Horizontal Drills

Automatic Oil lubrication

Helical Rack and Pinion on X Axis

Ballscrew Drives on Y and Z Axes

Table size..3700 mm x 1600 mm (145” x 63”)

Table Pop-Up Pins..

Vacuum Zones per Table; 2

Hand Held Remote Pendant



INCLUDES 2- 10hp Becker Pumps


Maximum Feedrate-

X axis:80meters/min(3,150”/min) Rack/Pinion

Y-axis: 30 meters/min (1,181”/min) Ball Screw

Z-axis: 30 meters/min (1,181”/min) Ball Screw

Shipping Footprint: 18 (length) x 8 (width) x 8 (height)
Weight: 14500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
