2006 Flexicam CNC Router 5 X 8
Extremely Clean fully functional CNC Router from Flexicam. Comes with Becker Vacuum System and tool holders!
|MA ID:||RC3 - 12968|
CNC Router (3-axis)
|Year of Manufacture:||2006|
|Electric:||220 Voltage 60 Cycle 3 Phase|

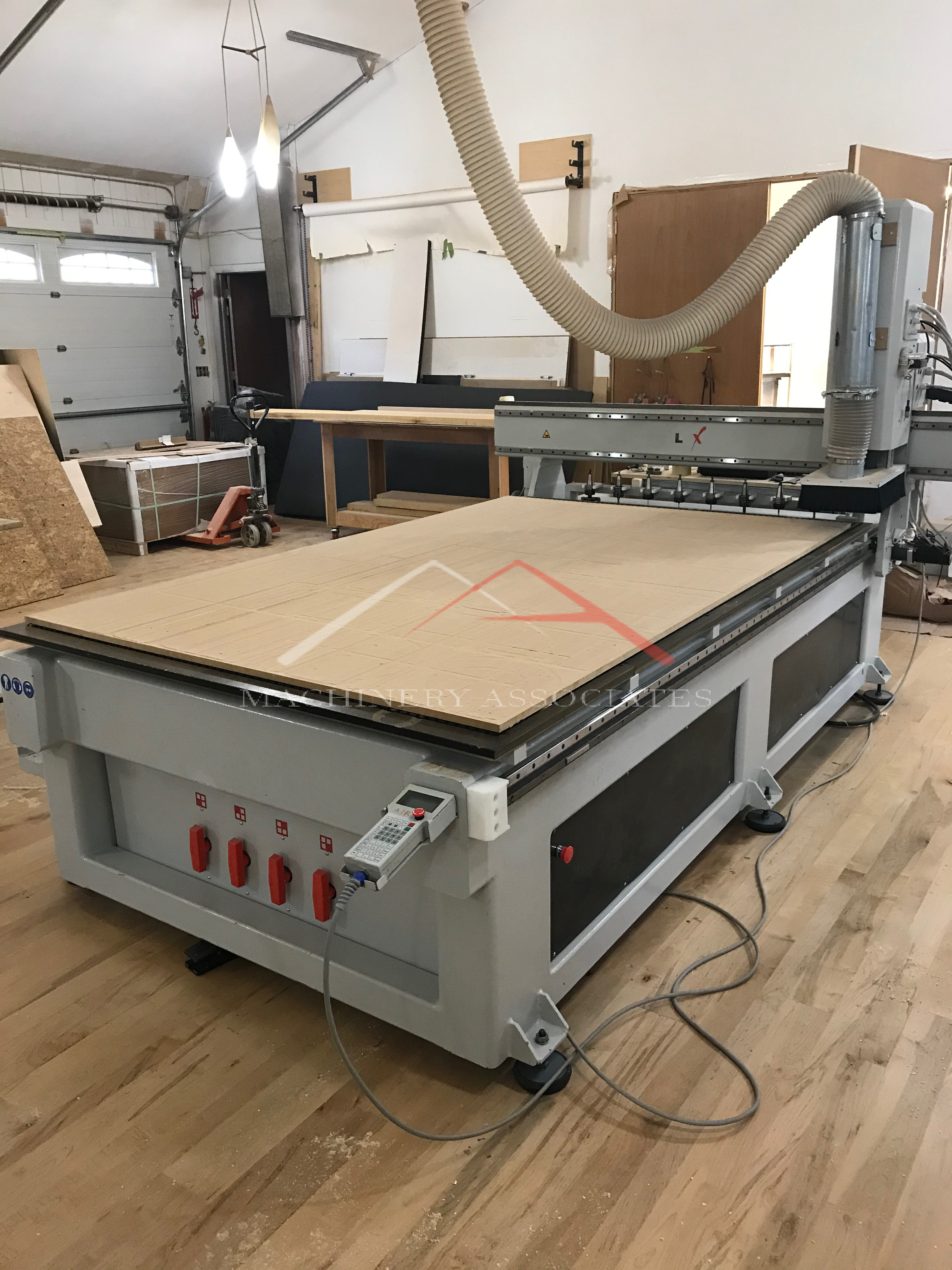

2006 Flexicam 5 by 8 CNC Router
60”x 96” Phenolic High Pressure Vacuum Table
11 Hp HSD ISO-30 Main Spindle
8 Position Automatic Tool changer
Tool Sensor Mounted to the Worktable for easy tool touch-off
Maximum Cutting Speed 1,180 Inches Per Minute
Maximum Rapid Traverse Speed 2,360 Inches Per Minute
HPGL & GCode compatible
Air regulator assembly and Air Pressure Sensor
Heavy Single Piece Frame Heavy wall steel construction throughout machine including gantry and base frame components. The frame is thermally stress relieved and machined and the base is one piece construction for maximum precision.
Becker VTLF250 10 HP Rotary oil less Vane vacuum pump Low hour machine coming out of a low volume 2 man custom furniture shop.
Machine built in Germany
|Shipping Footprint:||130" (length) x 102" (width) x 96" (height)|
Required on selling end
