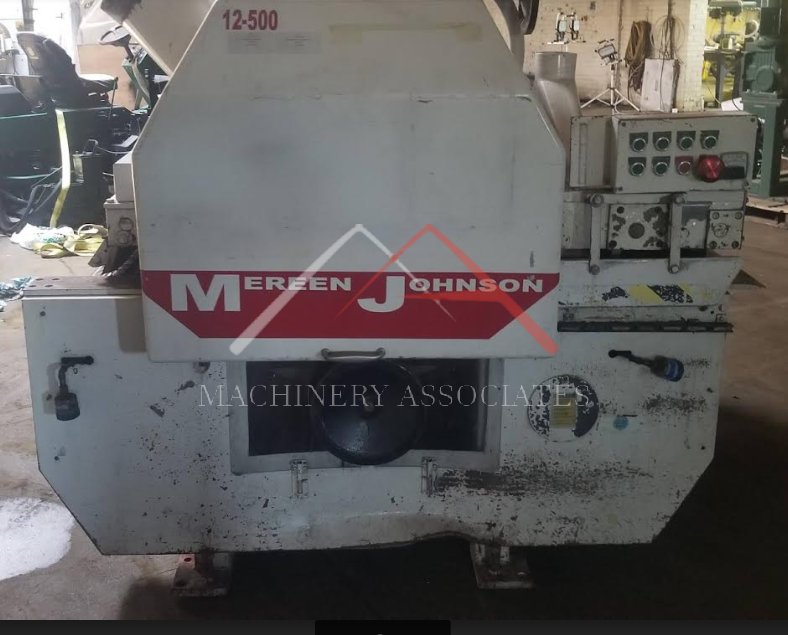

MEREEN jOHNSON MJ 431 DCS MULTIBLADE GANG RIP SAW

MEREEN jOHNSON MJ 431 DCS MULTIBLADE GANG RIP SAW

MA ID: RGR - 12952
Status: Sold
Price: $69,500.00
Category:

Rip Saw - Gang (multi blade)

Manufacturer: Mereen-Johnson
Model: DCS431
Year of Manufacture: 2001
Condition: Very Good
Electric: 460 Voltage 60 Cycle 3 Phase
GREAT SAW WITH 31" WORKING WIDTH REFURBISHED BY MEREEN JOHNSON

UNDER CONTRACT



Working capacity: 31" Arbor cap., 14" max. dia. tooling, 3-1/2" max. motorized thickness adjustment, 29" min. length for glue joint accuracy and 22" min. for busting only, 6" throat.

Motor: Equipped with: 75 HP - 3,600 RPM TEFC direct drive motor, arbor with disc brake & load meter, arbor lockout on access door. Opal-Pro MS6 solid-state reduced voltage starter.

Feed & chain: AC Inverter controlled feed drive with feed speeds from 30 to 200 FPM with adjustable jam protection, M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain. Variable speed  feed chain, (AC inverter control). Replaceable rubber inserted feed chain; slip off outboard bearing; Infeed and outfeed anti-kick-back fingers and Bijur mist lubrication system

Setting aides: Rip to both sides of arbor. Power raise/lower saw arbor & hold-down assembly

Note: Machine refurbished by MJ many new parts, enclosure and painted.




Shipping Footprint: 7 (length) x 7 (width) x 6 (height)
Weight: 8500 lbs
