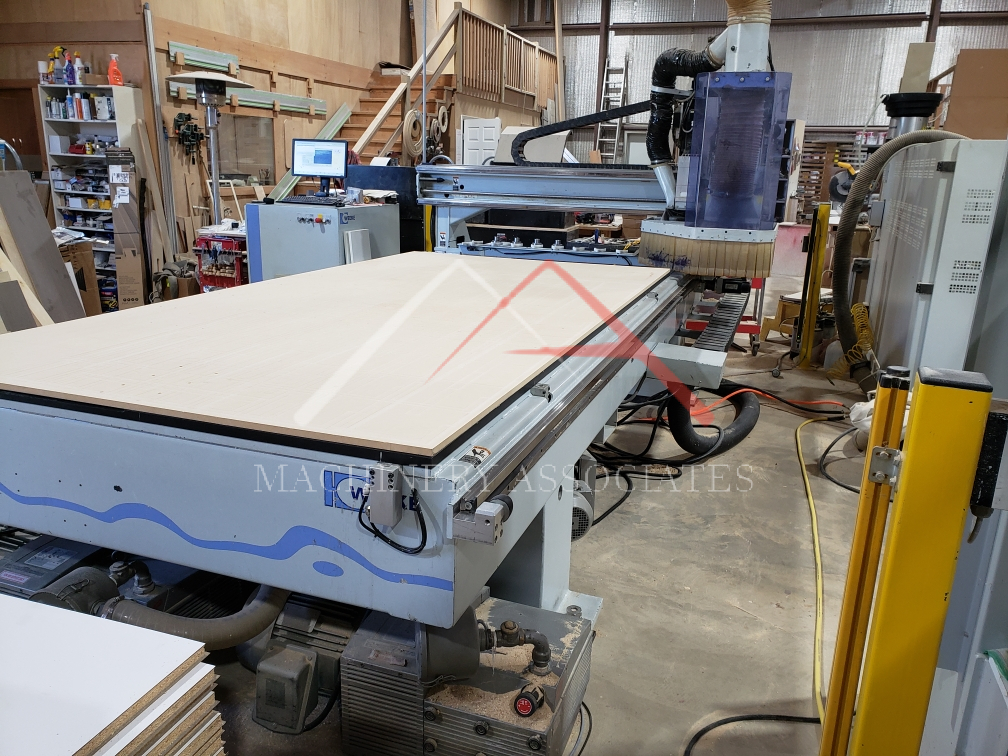

Weeke BHP 007 (5x10) Flat Table CNC Router

2008 Weeke Flat Table CNC Router!! Ready to ship!! Owner upgrading the 5 by 12 from Weeke. Put over 8K into machine in the past 10 months.

MA ID: RC3 - 12803
Price: $34,500.00
Category:

CNC Router (3-axis)

Manufacturer: Weeke
Model: Profiline BHP 007/510
Year of Manufacture: 2008
Condition: Very Good
Electric: 480 Voltage 60 Cycle 30 Phase

Machine Description:

Table Size: 122″ x 61″

Maximum Workpiece Thickness: 100 mm

Spindle HP: HSD 12 KW (16 HP) HSK Toolholders

Router Spindle Speed: Programable - 1,250 – 24,000 RPM

10 Position Tool Changer (rack)

Automatic Tool Length Sensor

7 Position Drill Brank

Number of Pneumatic Pop Up Pins: 3

Positioning Speeds: 72 m/min (x), 62 m/min (y), 25 m/min (z)
X/Y Vector Speed: 96 m/min

Air Volume Requirements: 1900 CFM
Consumption Volume: 600/700 NL/min
Electrical: 480 V/ 3PH/ 60 Hz
Total Connected Load: 27.5 kW

4 Vacuum Pumps (432 m3/h)

Safety Light Curtains




Shipping Footprint: 16 (length) x 8 (width) x 8 (height)
Weight: 7500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
