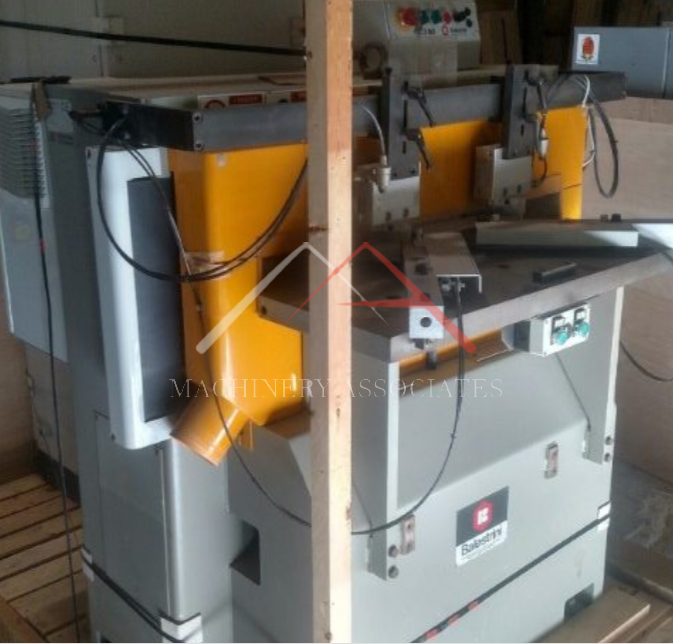

Balestrini Pico MD-2  CNC Mortise/Tenon Cutter with VERY low hrs.

MA ID: TN1 - 12058
Price: $24,900.00

Tenoner - Single end

Manufacturer: Balestrini
Model: MD 2
Year of Manufacture: 2007
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase
For the production of mitered cabinet doors or frames, using blind mortised and tenon or manufacture products with mortise and tenon joinery


5-1/2 hp  tenon motor @ 9,000 and 12,000rpm

2.-1.2hp mortising motor@9,000/12,000/18,000rpm

Tenon width from 0 to 5-1/2";

Tenon depth from 13/64" to 1-3/16"

Table dimensions;35" x 12-1/2"

Fence adjustment 0 to 45 degrees;

X and Y axis speed 15 meters per minute;

Internal stop for machining 90 and 45 degrees

Diamond cutting tool; 10 mm diameter mortising bit;

(2) 100 mm dust extraction hoods;

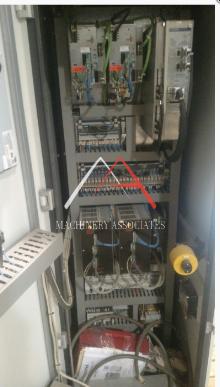

NUM 1020 CNC controller with 15" color touch screen; PC with Windows XP Professional;

Production estimates; from 40 to 50 doors per hour depending on the size of material and specific machining operation


Shipping Footprint: 5 (length) x 5 (width) x 5 (height)
Weight: 2000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
