4x8 NEWCNC CNC Router with Rotary Axis

MA ID: RC3 - 11141
Status: Sold
Price: Call For Price
Category:

CNC Router (3-axis)

CNC Router (4-axis)

Manufacturer: NewCNC
Model: Smart ER48
Year of Manufacture: 2008
Condition: Good
Electric: 230 Voltage 60 Cycle 3 Phase

Used NEWCNC Router with 50" x 98" bed with attached rotary axis (lathe) zone.

Description Specification:
Working table size 50" (1270mm) x 98" (2489mm)
Table Type 2 Zone Vacuum with gauge
Vacuum Pump 10 hp liquid ring vacuum pump
With inlet filter
Z axis Stroke 8" (200mm)
Rapid Traverse Speed (max) 2225"/min X-Y Z-600"/min
Spindle Type 6 HP liquid cooled
With 6 tool Auto Tool Changer
Dust hood, hose and manifold
included
Overall Size l x w x h 125" x 93" x 72"
Total weight 4,200 lbs
Voltage (Machine) 220v/60 Hz/3 phase 30 amps
Voltage (Vacuum Pump) 220v/60Hz/3 phase 30 amps

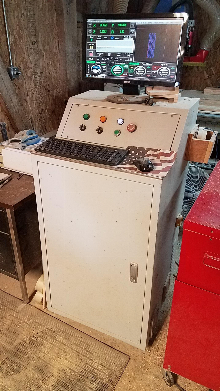

Control Box Separate cabinet w wheels
Running Mach 3 machine interface

10HP Travaini Vacuum Pump


Shipping Footprint: 120 (length) x 72 (width) x 72 (height)
Weight: 4800 lbs
