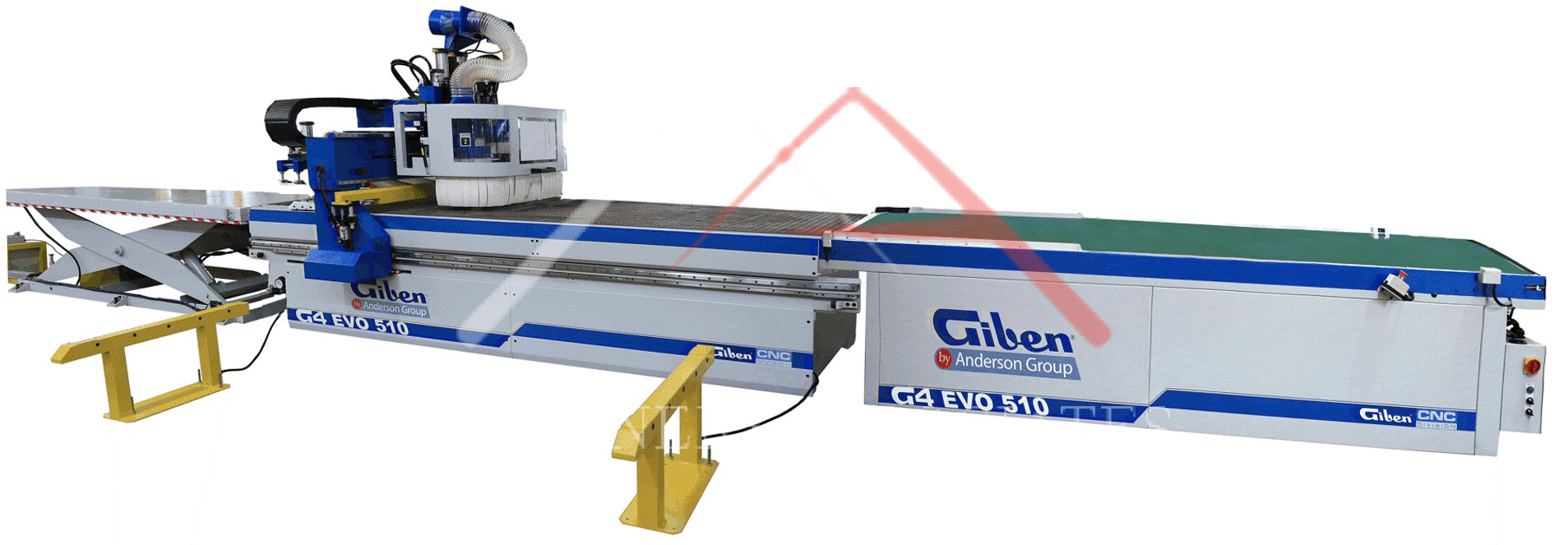

Giben G4 EVO CNC Router 5x10 Nested Cell

2020 Giben Demonstrator. Comes complete with installation and training! Full 2 year limited warranty. As close to new and you can get.

MA ID: RC3-12854
Price: $120,100.00 -or- as low as $2,427.22/mo.*
General Location: South East

CNC Router (3-axis)

Manufacturer: Giben
Model: G4 EVO 510 Nested Cell
Year of Manufacture: 2020
Condition: Excellent
Electric Multi volt, cycle, phase
Giben G4 EVO CNC Router 5x10 Nested Cell

Machine Description:

Fully Automatic Load Unload System

Single Table Hydraulic Lift Table w/ Sensor Eye for Height Adjustment

Suction Grippers for Loading Sheets from Bunk

Off Load Conveyor Table with Auto-stop End Sensor

Integrated Table Unload Dust Collection

Material Pusher Vacuums Table as it Unloads

5 By 10 High Flow Matrix Grid Vacuum Table w/ Part Location

(2) M Code Controlled Vacuum Zones

(1) 9hp Becker Vacuum Pump

Add 6500.00 For Additional Pump

(1) 18hp HSK63F Main Spindle w/ 8 Position ATC Ride Along

Automatic Tool Length Presetter 200 tool offsets

(8) Tool Holders and (16) Collets of Various Sizes

Aggregate Retention Ring for Aggregates

Stand for Tool Collet Tightening w/ Wrench

(1) 2hp Vertical Boring Block  (9) Independant Spindles

Automatic Centralized Oil Lubrication

Syntec 21MA PC based Controller:

Programmable Buttons for Repeated Tasks (Spindle Warm-up, Spoilboard Resurfacings etc)

Windows 10

Anderson Group - Machine Virtual Panel

Handheld MPG

Compatible with all Cabinet Software

Full 2 Year Limited Warranty*

Training Installation and Support:

Machine Installation, Training and Warranty by Anderson America

(3) Days Onsite Training to cover, up to (3) Operators

Training focuses on Operation of the machine, Control Functionality, and Machine Maintenance. Travel Expenses Included!

Lifetime Phone Support for Original Owner

Remote Diagnostics

Weight: 14500 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
