2007 Weeke BHP200 5 X 12 CNC Router

Fully serviced and in production until late April. Machine is the current work horse of the shop!

MA ID: RC3-12898
Price: $36,500.00 -or- as low as $737.67/mo.*
General Location: North East
Category:

CNC Router (3-axis)

Manufacturer: Weeke
Model: Optimat BHP 200
Year of Manufacture: 2007
Condition: Good
Electric Multi volt, cycle, phase

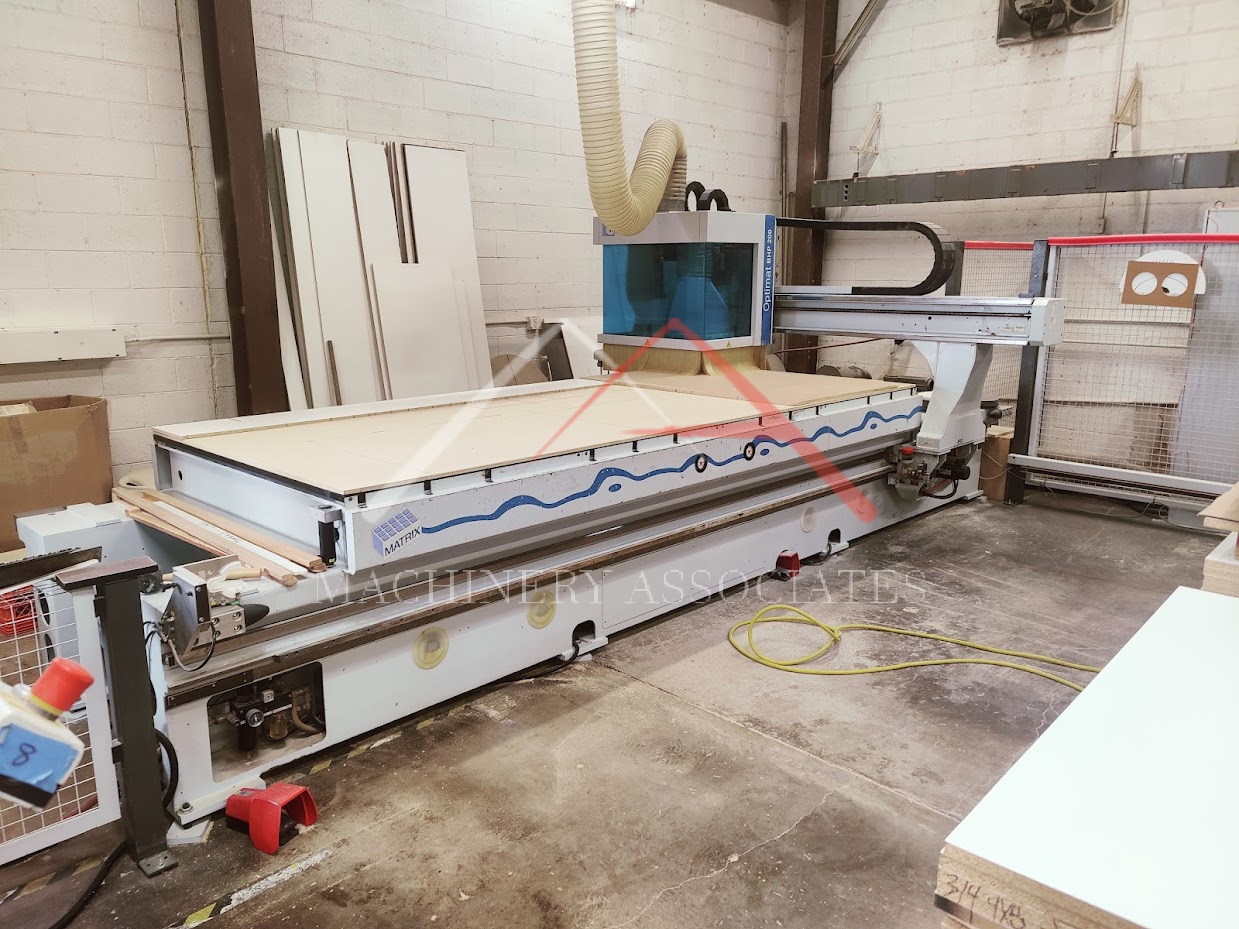

Weeke Optimat BHP 200 Flat Table CNC Router

Machine Description:

Flat table 5'X12' CNC Router;

Grooved "Matrix" phenolic table divided into (2) work zones.

Working field:

   "X" Axis is 3,700 mm (145.6")

   "Y" axis 1,550 mm (61")

   "Z" axis stroke is 14.5" (370 mm), max.

Material thickness 3.9" (99 mm).

Positioning speed: "X" Axis is 165 FPM (50 MPM), "Y" axis 131 FPM (40 MPM), "Z" axis is 65 FPM (20 MPM);

Machine head travels on THK linear motion guides on all axes.

Work Table: High flow vacuum table for nested base processing;

Pneumatic pop-up positioning stops.

Routing: (1) 12 HP (9 kW) High speed constant duty Router with HSK F63 adaptor - programmable 1,250 - 24,000 RPM

(1) 8-position tool changer

Drilling Unit: (1) 4 HP (3 kW) motor, variable speed for 1,500 - 7,500 RPM;

(14) independent vertical spindles;

Includes Just Rebuilt 25hp Becker Vacuum Pump

Shipping Footprint: 26 (length) x 8 (width) x 8 (height)
Weight: 17000 lbs
Rigger: Required on selling end
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
