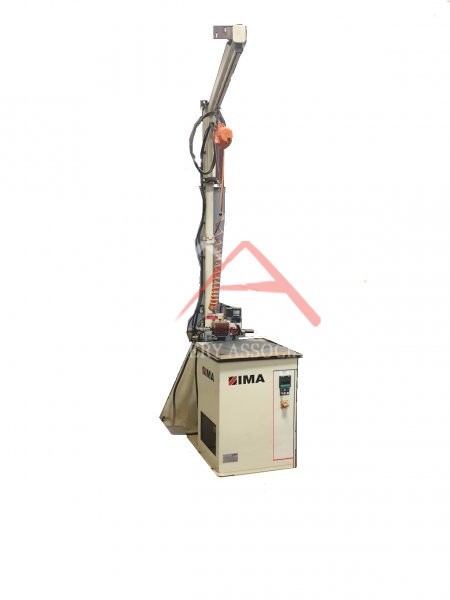

IMA Edgebander Model HKA
|MA ID:||EBC - 8219|
|Price:||$12,000.00 -or- as low as $0.02/mo.*|
Edgebanders - Contour
|Electric:||480 Voltage 60 Cycle 3 Phase|
IMA Hot Melt Glue Edgebander, Designed to allow operation by feeding parts past the glue head using the table and ball rollers, or the part can be vacuum mounted to the table (Vac Pump and Vac Pods included) with the head guided manually around the part with the weight of the applicator head counter-balanced from the boom. Specifications: Board Thickness 16mm to 45mm(0.630" - 1.77"), Strip Height 20mm-50mm (0.78"-1.97"), Strip Thickness 0.4mm to 3mm (0.016" - 0.118"), Glue Tank 0.8Liter (48 Cubic Inches, or 0.8 quart ), Processing Temperature 140 to 220 C Degrees ( 284F-428F). Current running 8 Amps, Glue Pot 1400 Watts, Max Overall Watts 2600. Weight of Movable head 20kg ( Note: this 45 lbs head weight is counter-balanced with spring.) Working height 960mm (37 3/4"), Unit includes operators manual.
|Shipping Footprint:||72" (length) x 36" (width) x 96" (height)|
