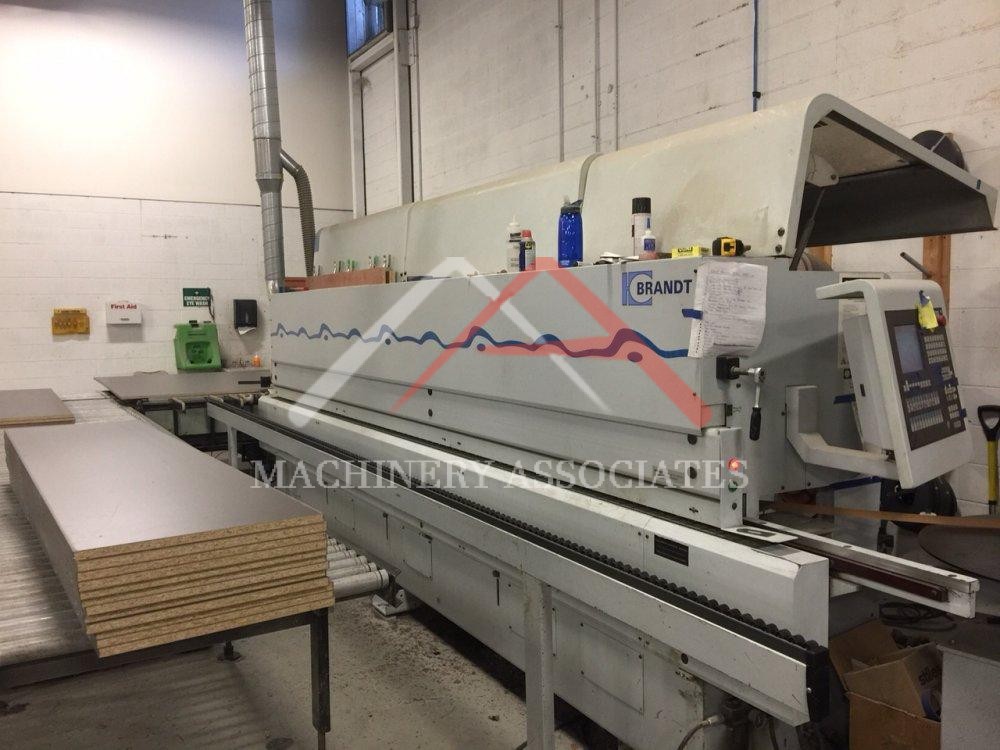

Brandt Edgebander w/ Double Corner-Rounding

MA ID: EBS - 7956
Status: Archived
Price: $32,500.00
Category:

Edgebanders -Single Sided

Manufacturer: Brandt
Model: KDN 660-2C
Year of Manufacture: 2004
Condition: Very Good
Electric: 208/230/460 Voltage 60 Cycle 3 Phase
Hours on meter: na

Edge band thickness 0.4 12 mm (0.016" - 1/2 )

Coil cutoff maximum 0.8 x 60 mm; 3.0 x 45 mm (PVC)

Edgeband height 12 - 65 mm (1/2" 2 9/16 ")

Panel length min. 160 mm (6 3/8")

Panel width min. 65 mm (2 3/8")

Panel thickness - min. 8 mm (5/16") - max. 60 mm (2 3/8")

Feed speed two speeds 16 m/min (52 FPM) and 11 m/min

( 36 FPM ) when using the contour trimming unit.

PC-20 Program Control; PC: Industrial PC, 600 Mhz, Front side USB port.

- Memory: 256 Mb ram, 1 Gb Flash Card.; Screen: 12.1 Color;

- Internal modem for remote diagnostic link.

Smooth upper pressure rollers.

Automatic feed track lubrication system.

Pre-melt granulate glue application system; Quick-change glue tank.

First pressure roller driven and three idle pressure rollers.

Double motor end trimming unit.

Program controlled indexing from straight to bevel end trimming.

Flush Trimming: Top/bottom (2) motors, 0.50 KW (0.67 HP) 12,000 RPM with 2-position vertical movement.

Fine Trimming Station: Top/bottom (2) motors, 0.35 kW (0.50 HP) 12,000 RPM, bevels 0° - 25°, with combination flush/radius/chamfer cutterheads; horizontal and vertical tracing wheels, comes with optional brushless servo-motors for quick thickness changeover.

Corner Rounding Unit: (2) Motor 0.35 KW (0.5 HP) 12,000 RPM for leading and trailing edges of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness.

Radius Scraping (PVC): Top/bottom with pneumatic control, pvc scrape collection box.

Buffing Station: Top/bottom (2) motors, 0.09 KW (0.125 HP) 1,400 RPM. Auto tilt. Radius / straight DFC (dust flow control) cutters included. This unit provides superior dust flow control of the trimmed chips and provides precise trimming due to location of the vertical copy rollers. Diamond cutters with 2mm radius.

Program controlled indexing.


Shipping Footprint: 20' (length) x 6' (width) x (height)
Weight: 6000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
