MA ID: PNC - 5646
Status: Sold
Price: $12,500.00 -or- as low as $0.02/mo.*

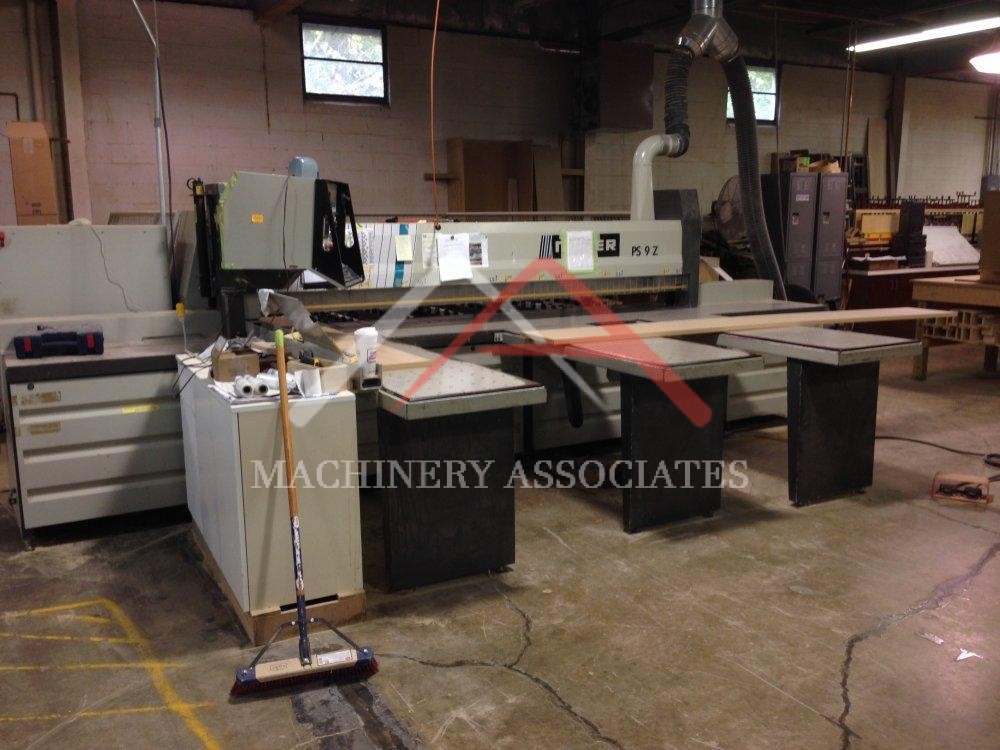

Panel Saw - CNC

Manufacturer: Mayer
Model: PS 9Z
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase
Hours on meter: na

•  Cutting length 125.9" (3,200 mm), 4.1" (105 mm) max saw blade projection, 12 HP (9 kW) main saw motor &
1.5 HP (1.1 kW) scoring motor, 355 mm dia. main blade and 127 mm dia. score blade dia.
• Saw carriage with rack & pinion drive;
• Electronically controlled overhead program fence with rack & pinion drive on hardened & ground guideways,
• Equipped with: (6) Clamps (open up to 3.1" / 80 mm);

AC Servo motor drives on both the saw carriage and pusher
fence; rear table with double row support rollers.
• PC front end with "IPC 5000"
• Machine equipped with Rear support rails with rollers;

78.7" long cross-cut fence; automatic side aligner
 (3) front mounted air
table (78" x 25"); plastic segmented safety guards on front of pressure beam; safety fencing around the back
section of the machine.

Shipping Footprint: 23' (length) x 8' (width) x (height)
Weight: 15000 lbs
Rigger: Required on selling end
Required on buying end
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
