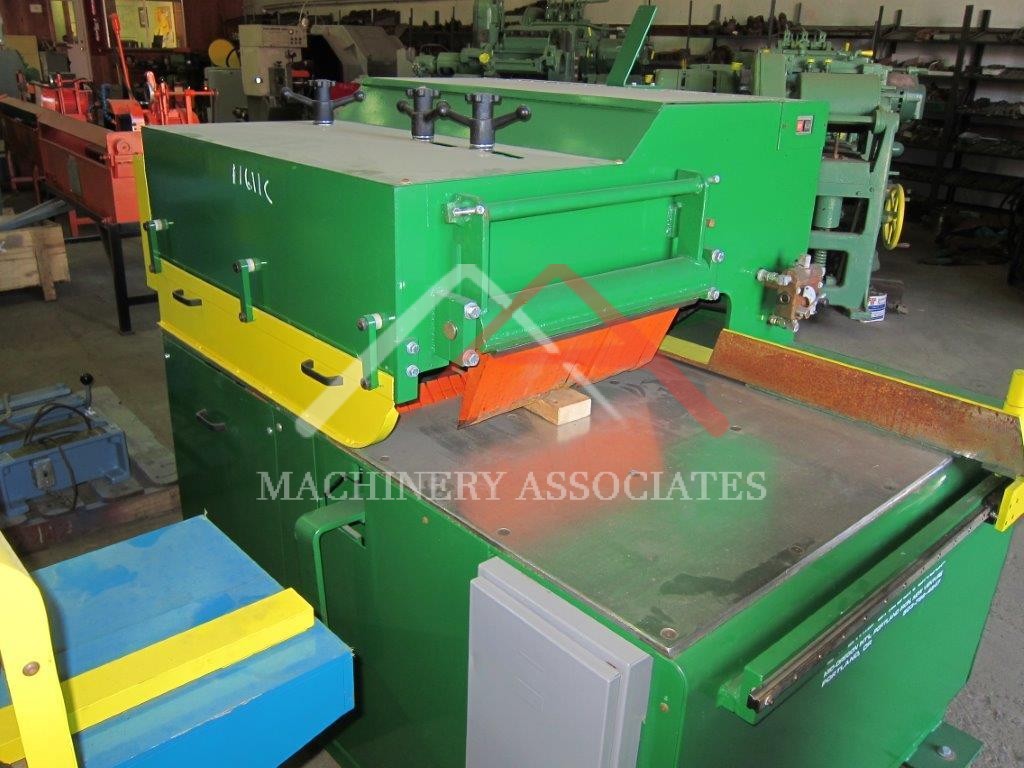

MidOregon Model MS14 Gang Ripsaw Rollfeed

MA ID: RGR - 11212
Status: Sold
Price: $35,900.00 -or- as low as $0.02/mo.*
General Location: South East
Category:

Rip Saw - Gang (multi blade)

Manufacturer: Mid-Oregon
Model: MS-14
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase

Mid-Oregon Model MS-14 Gang Ripsaw "Rollfeed"

Working capacity: 2-1/8” maximum rip thickness; 49” rip-to-center capacity for panels; rigid “C” shape offers capacity for wide rips and panel.

Arbor: 50 HP Bottom arbor 4,000 RPM motor; 2-3/4” dia. X 14” long spindle for constant geometry at every load or speed; arbor accepts 12 diameter blades. Undercutting blade is an important advantage providing maximum safety, productivity, and rigidity.  Over-cutting saws tend to pick up the edgings and slivers, kicking back at the operator.  In comparison, undercutting blades hold edging down against the table rolls.

Feed: Variable speed feed drive from 50 to 300 FPM; hydraulically driven top rolls can be independent, canted, or run in line; no sprockets or U-joints; saw can be set up for maximum yield.  Feed works with (3) top powered feedrolls, 12-1/2” center to center over arbor; double kickback protection; double exhaust (lower and upper).  Heavy end plates facilitate bolting or welding material handling equipment to saw frame.


Shipping Footprint: 6 (length) x 6 (width) x 4500 (height)
Weight: 4500 lbs
