Makor Q-One Reciprocating Spraying Machine

MA ID: FLA - 5964
Status: Sold
Price: $52,500.00
Category:

Systems & Automated Lines

Manufacturer: MAKOR
Model: Q-ONE
Year of Manufacture: 2007
Condition: Very Good

This machine was bought for 2 projects and has relatively low usage.

This is a desirable unit and is priced to sell.

Q-ONE

Reciprocating spraying machine

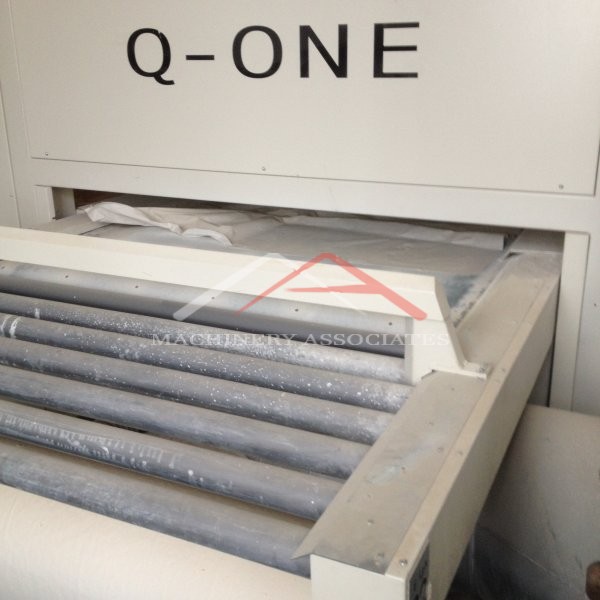

Q-ONE is a single arm oscillating spray machine utilizing 4 automatic spray guns. It is designed for finishing medium to small lots where frequent product changes or intermittent spraying is required. Q-ONE is also ideal for use when spraying glue or very fast-drying coatings. The conveyor is a self-winding disposable paper roll that eliminates the necessity for a belt cleaning system and the need to clean the machine between jobs. Simply flush the guns in preparation for the next batch of parts.

Features:

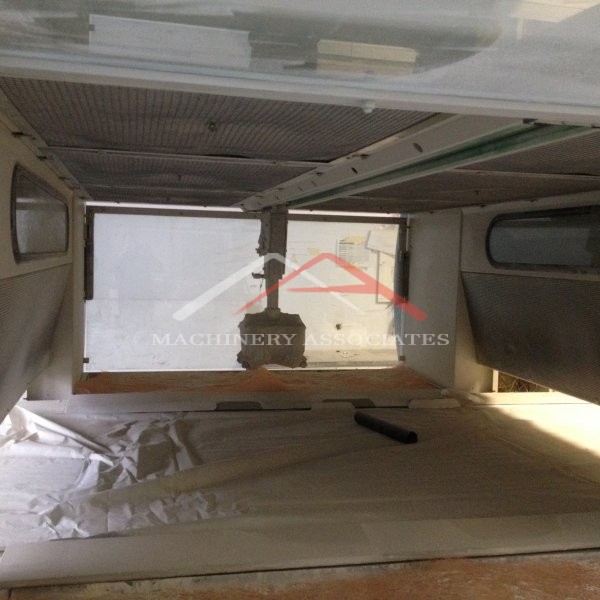

  • Spraying enclosure pressurized with filtered air via two intake fans
  • Internal air flow is adjustable by means of inverters
  • Paper feeding and re-wind are at opposite ends of the machine for easy access
  • Paper re-rewinding has a self-adjusting spreader to keep paper flat and evenly wound
  • Vacuum bed under paper conveyor has an independent blower
  • Touch screen PLC controller includes spraying recipes and production statistics
 Product Specifications
Feed Motor Power; 0.75 KW
Exhaust Fan;         5.5 KW
Reciprocator Motor; 2.2 KW
Paper Rewind Motor0.18 KW
Vacuum Belt Motor;      1.5 KW
Feed Speed (feet);3 - 20 f/min
Working Speed;8 - 16 f/min
Paper Roll Diameter;21.5"
Weight;7,800 lbs.
Extraction Air;7950 cfm
Pressurization Air;3900 x 2 cfm
Total Installed Power;13 KW

Shipping Footprint: 169" (length) x 165" (width) x 102H (height)
Weight: 8000 lbs
Rigger: Required on selling end
Required on buying end
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
Click Herefor More Info or call Product Manager Dan Bashaw 877-622-4657 x106
